2BFG-N Series
·Radar for determining speed.
·Soil tillage implement (seeder,cultivator)

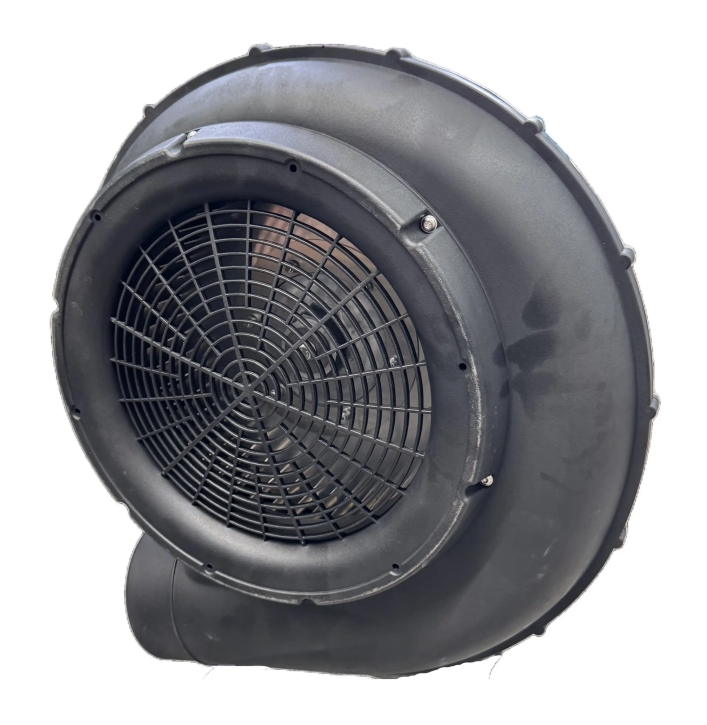

If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm
Seed pipe monitoring(optional)
Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.

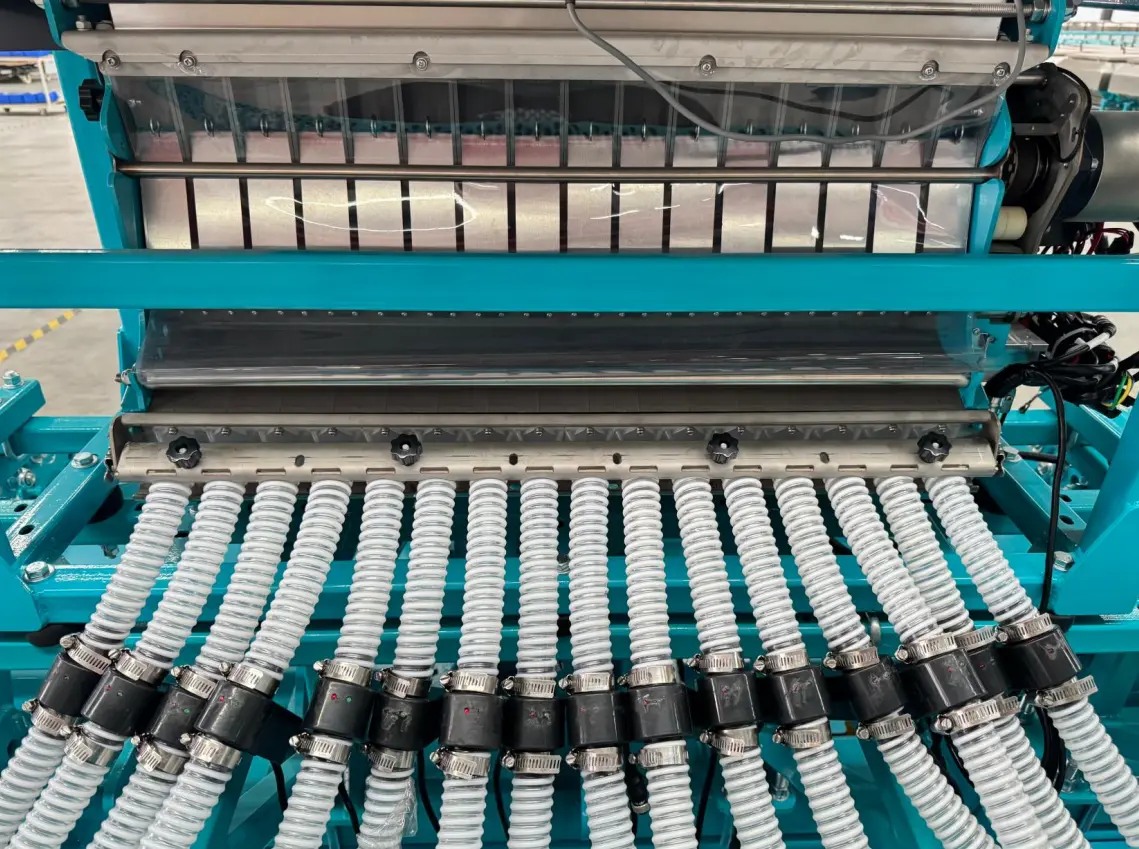

Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.

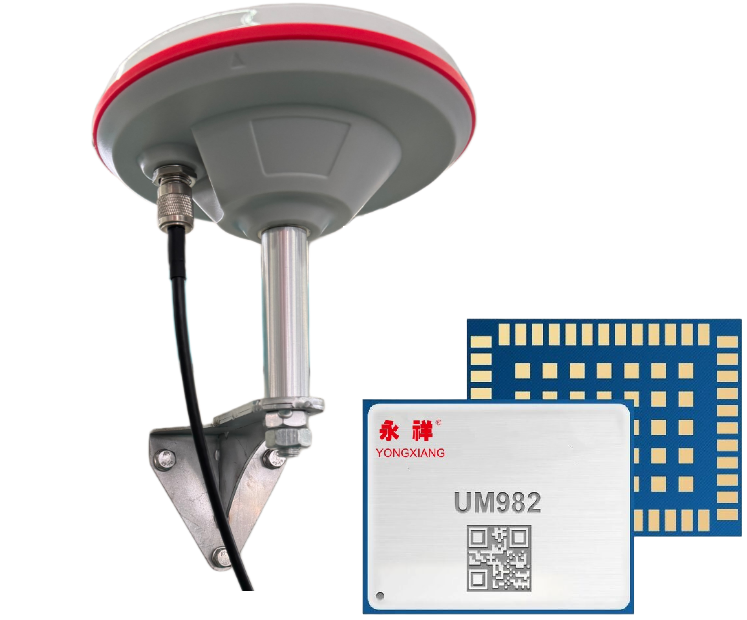

GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time

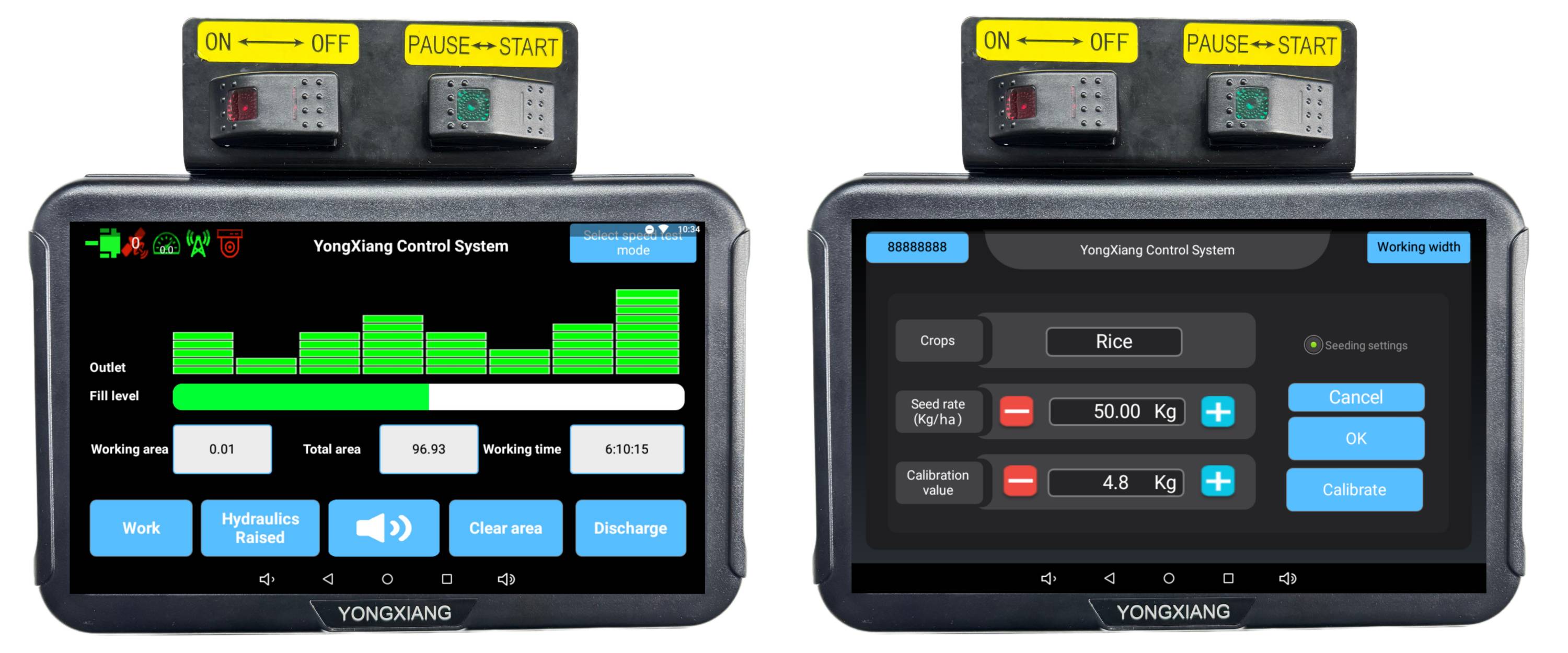

Monitor the seeding process in real time on the console.
Broadcast (fan) or row sowing
·Radar for determining speed.
·Soil tillage implement (seeder,cultivator)
If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm
Seed pipe monitoring(optional)
Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.
GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time
Monitor the seeding process in real time on the console.
Broadcast (fan) or row sowing
NO. | Item | Unit | Design value |
1 | Type NO. | / | 3ZF-8A |
2 | Attachment to Tractor | / | 3-point linkage mounted |
3 | Supporting Power | HP | 220-300 |
4 | Electric Power | kW | 0.8 (DC12V) |
5 | Dimension(Lxwxh) | cm | 280x550x300 |
6 | Working Speed Range | km/h | 3-6 |
7 | Working Efficiency | hm²/h | 1.6-3.2 |
8 | Weight | kg | 2200 |
9 | Working Width | m | 5.2 |
10 | Single Profiling Mechanism Type | / | Parallel four-bar linkage |
11 | Fertilizing Trencher Type | / | Tines |
12 | Fertilizing Type | / | drill seeding |
13 | Fertilizing Rows | row | 8 |
14 | Row Spacing | cm | 50/70(Adjustable） |
15 | Fertilizing Transmission Type | / | Stepper motor |
16 | Speed Measurement Method | / | Radar |
17 | Fertilizer Discharge Method | / | Seed-metering roller+pneumatic delivery |
18 | Fertilizer Rate Adjustment Method | / | Realized precision sowing through intelligent precision electric drive control system and APP/touch screen tablet control, digital intelligent input, radar speed measurement synchronous control, detection automatic variable adjustment |
19 | Fertilizer rate range | kg/hm2 | 7.5～600 |
20 | Fertilizer Hopper Capacity | L | 350 |
21 | fertilizer spreading accuracy | / | ≥95% |
22 | Seed Blockage Monitor,Low Hopper Sensor,Missed Sowing Alarm | / | √ |
23 | Conveying Device Type | / | Corrugated plastic pipe |
24 | Equipped with forced fertilizing device | / | Yes (agitator,seed meter roller forced fertilizer to air-driven seeding) |
