Pneumatic Seeder 8/12/ Dual 12/16/20 Outlets

All the seeder includes:

· 75L/150L/350L/100L/300L/500L/600L/1250L optional hopper size

· 10 inch control tablet

· Radar sensor kit

· Control system kits (control unit,12V fan blower/hydraulic fan,stepping 12V motor/brushless motor,motor driver)

· Camera for monitoring the seeding process

· Agitator with empty indicator in hopper

· Battery cable in 6 m

· Standard 8/12/16/20/24 baffles

· Standard 1 roller shaft

· Plastic flex hoses 30m/2x30m

· Scale for calibration test,1 calibration bag

· Drill pipes or spreading baffle kits

MULTI PNEUMATIC PRECISION SEEDER

PNEUMATIC MULTI SEEDER

2BDGS- 8 / 2BDGS- 12 / 2BDGS- 12S / 2BDGS- 16 / 2BDGS- 20

PRECISE SEEDING OF ALL TYPES OF SEEDS AND FERTILIZER

rice oilseed rape grass spreading fertilizer

Grass Seeds

Small Seeds

Cover Crops Seeds

Granular Fertilizer

Description :

SPECIFICATION

Technical data
Type NO.	2BDGS-8-L75	2BDGS-8-L150	2BDGS-8-L350	2BDGS-12-L100	2BDGS-12-L300	2BDGS-16-L500	2BDGS-20-L600	2BDGS-12S-L600	2BDGS-12S-L1250
Hopper capacity	75L	150L	350L	100L	300L	500L	600L	600L	1250L
Outlets	8			12		16	20	Dual 12(24)	Dual 12(24)
Dimensions (L×W×H) in mm	743x488x827.5	840x792x856	1050x872x1137	800x350x827	1100x780x996	1305x780x1164	1473x780x1184	1855x1355x1112	2000x1080x1430
Weight in kg	70	90	130	110	140	178	200	380	510
Blower fan	Dual 12 volt electric blower fans					2x Dual 12 volt electric blower fans			/
Hydraulic fan	Optional								√
Working width (electric fan)	Up to 8 m
Working width (hydraulic fan)	Up to 12m
Power requirement	12 volts DC-25A Max					12 volts DC-50A Max
Hopper material	PE				Stainless steel			PE	Stainless steel
Chassis material	Stainless chassis, powder coated
Hose length	30m							2x30m
Seeding shaft	1pcs							2pcs
Precise control box	√	√	√	√	√	√	√	√	√
Calibration bag, seed scale	√	√	√	√	√	√	√	√	√
Speed radar sensor	√	√	√	√	√	√	√	√	√
Speed GPS sensor	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Stainless steel agitator	√	√	√	√	√	√	√	√	√
Seed pipe monitoring	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Touch screen control tablet	√	√	√	√	√	√	√	√	√
Drill pipes or Spreading baffle kits	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√(2 sets)	√(2 sets)
Fill level sensor	√	√	√	√	√	√	√	√	√
Seed blockage monitor	√	√	√	√	√	√	√	√	√
Foreign object sieve	√	√	√	√	√	√	√	√	√
Seeding shaft monitor camera	√	√	√	√	√	√	√	√	√
GPS positioning chip	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Operating temp. /storage temp	(-10 to +50°C )
Precise sowing	Realized precision sowing through intelligent precision electric drive control system and APP/touch screen tablet control, digital intelligent input, radar speed measurement synchronous control, detection automatic variable adjustment
Seed	•Grass seed and fine granules(non-corrosive) •Catch crops, nurse crops, and reseeding(rice,wheat,rapeseed ,sorghum,soybean etc) •All types of seeds		•Grass seed and fine granules(non-corrosive) •Catch crops, nurse crops, and reseeding (rice,wheat,rapeseed ,sorghum,soybean etc) •All types of seeds			•Grass seed and fine granules (non-corrosive) •Catch crops, nurse crops, and reseeding (rice,wheat,rapeseed ,sorghum,soybean etc) •All types of seeds • Large seeds (peas,wheat, broad beans,forage rye)		•Grass seed and fine granules(non-corrosive) •Catch crops, nurse crops, and reseeding (rice,wheat,rapeseed ,sorghum,soybean etc) •All types of seeds • Large seeds(peas,wheat,broad beans, forage rye) •Distribute 2 types of seeds •Sow the same seed in 24 rows
Recommendation	• Small agricultural operations • Viticulture • Fruit and vegetable plantations • Spreading fine seed with small working widths		• Small and medium-sized agricultural operations			• Large farms • Contractors		• Large farms • Contractors
Advantages	• Ideal for mounting on narrow soil tillage implements • Minimal space requirements for transport and mounting • Easy mounting		•Comfortable operation: reduce the frequency for refilling •Easy mounting			•Large working width •Ideal for folding implements •Easy mounting		•Numerous applications • Increased working comfort thanks to higher basic equipment • Easier refilling of the seed thanks to a large hopper opening

FEATURES

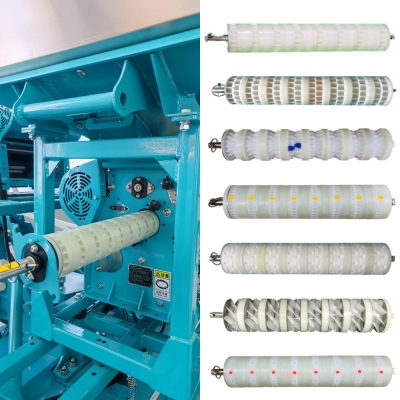

SEED METERING MECHANISM

Unlike most other types of seeders, the YongXiang seeders uses individual metering wheels for each seed outlet enabling extremely accurate seed metering and guaranteeing the same amount of seed is fed to each outlet,This is crucially important when using low seed rates and small seeds.Tool-free handling for changing the roller with various cells for different spreading materials (fine, medium, large), no tools are required. 1pcs seed roller shaft is supplied as standard.

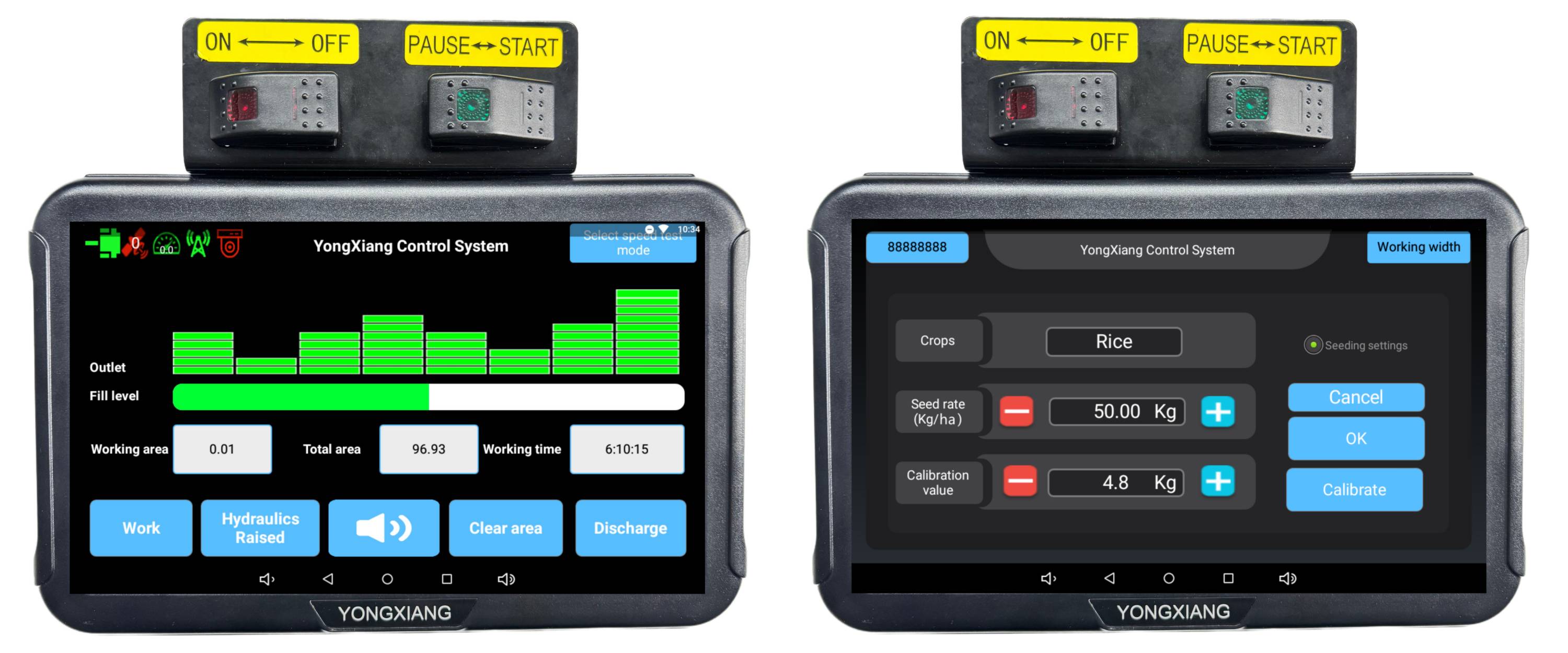

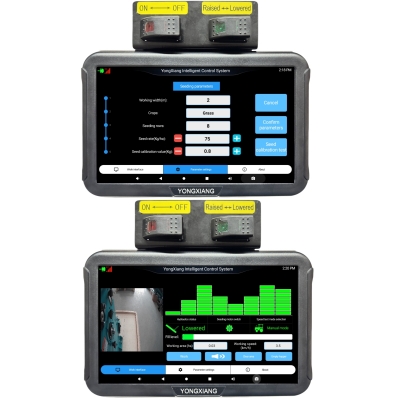

CONTROL PANEL LCD PAD IN-CAB

The Android based user-friendly LCD pad fitted in cab allows the operator to control and adjust basic seeding parameters. It also can monitor the seeder hoses condition,seed level,calculating working time and area in real time,Simple touch button priming switch on the seeder unit for seed calibration.

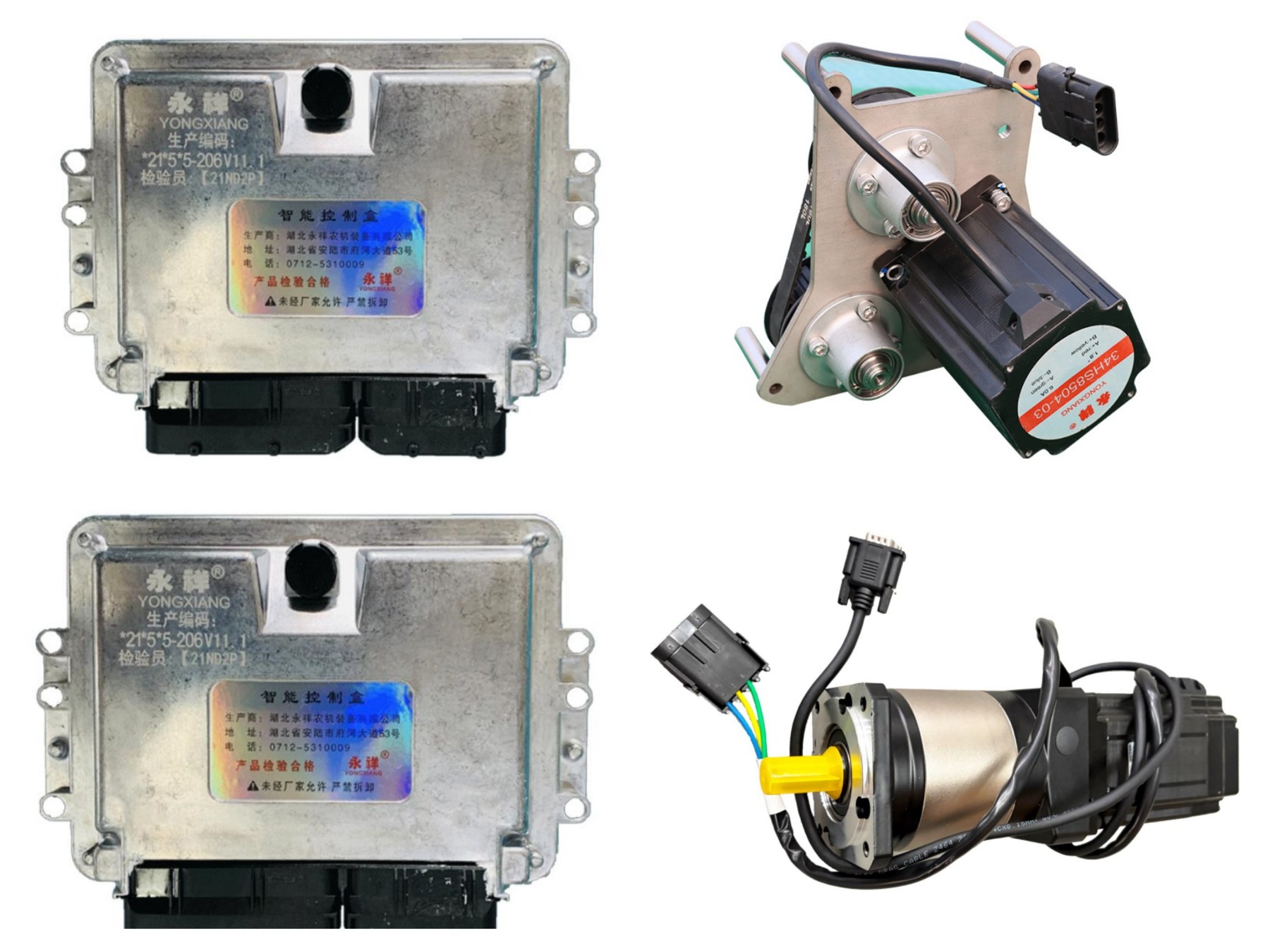

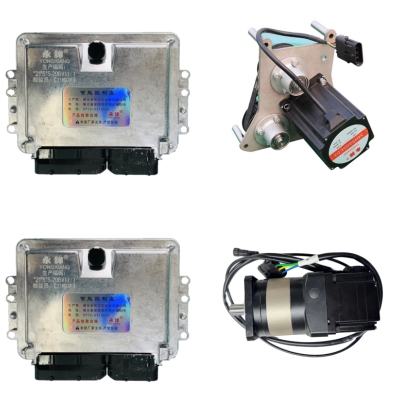

CONTROL AND DRIVE SYSTEM

The amount of seed applied is controlled by the speed of the metering roller and is adjusted until the desired seed rate is achieved. The YongXiang seeder has a clever step-less 12V electric motor/brushless motor that is constantly checked and adjusted by the computer control box to give you a constant seed rate at all times.

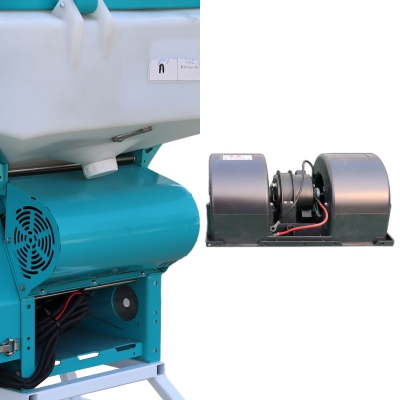

ELECTRIC FAN AIRFLOW SEEDS DELIVERY

The two 12v electric fans provide the airflow to deliver the seed down the pipe to the correct position,makes seeds deliver instantly and evenly. The fans are totally enclosed by mesh air that intakes to prevent the ingress of straw and chaff.

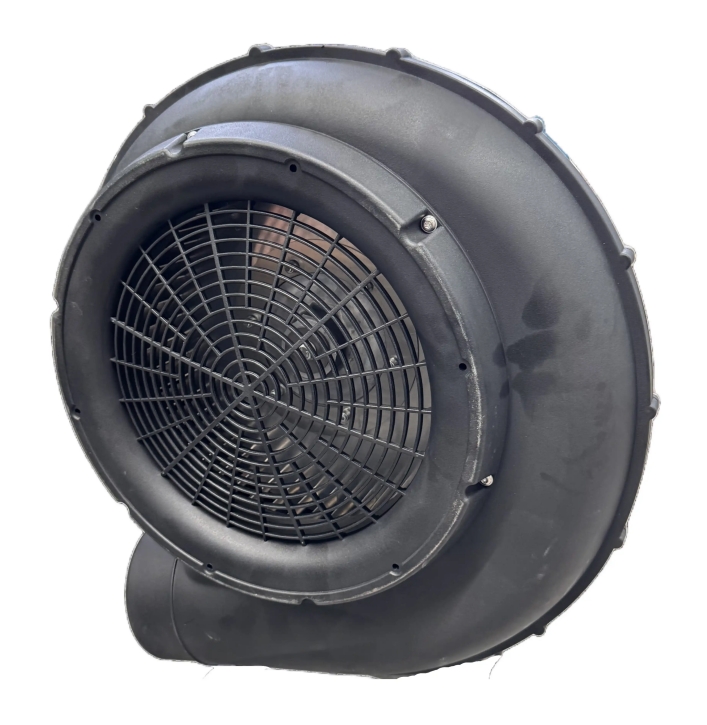

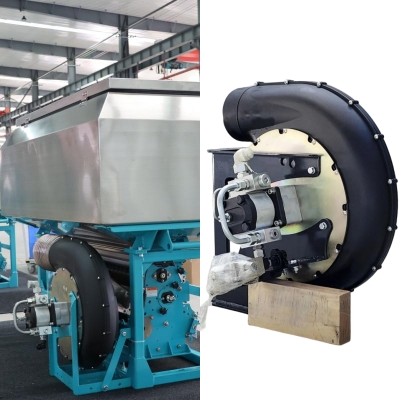

HYDRAULIC FAN(OPTIONAL)

If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm

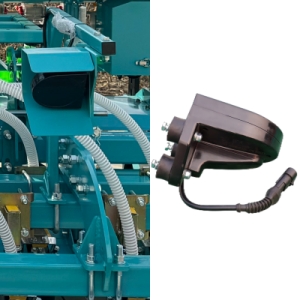

RADAR SENSOR FOR RATE-SPEED ADJUST

All YongXiang Seeders have a radar sensor metering the forward speed and feed back the speed value to control box,give constant forward speed related seed metering. It does not matter if you slow down or increase your speed you will always get the correct seed rate.

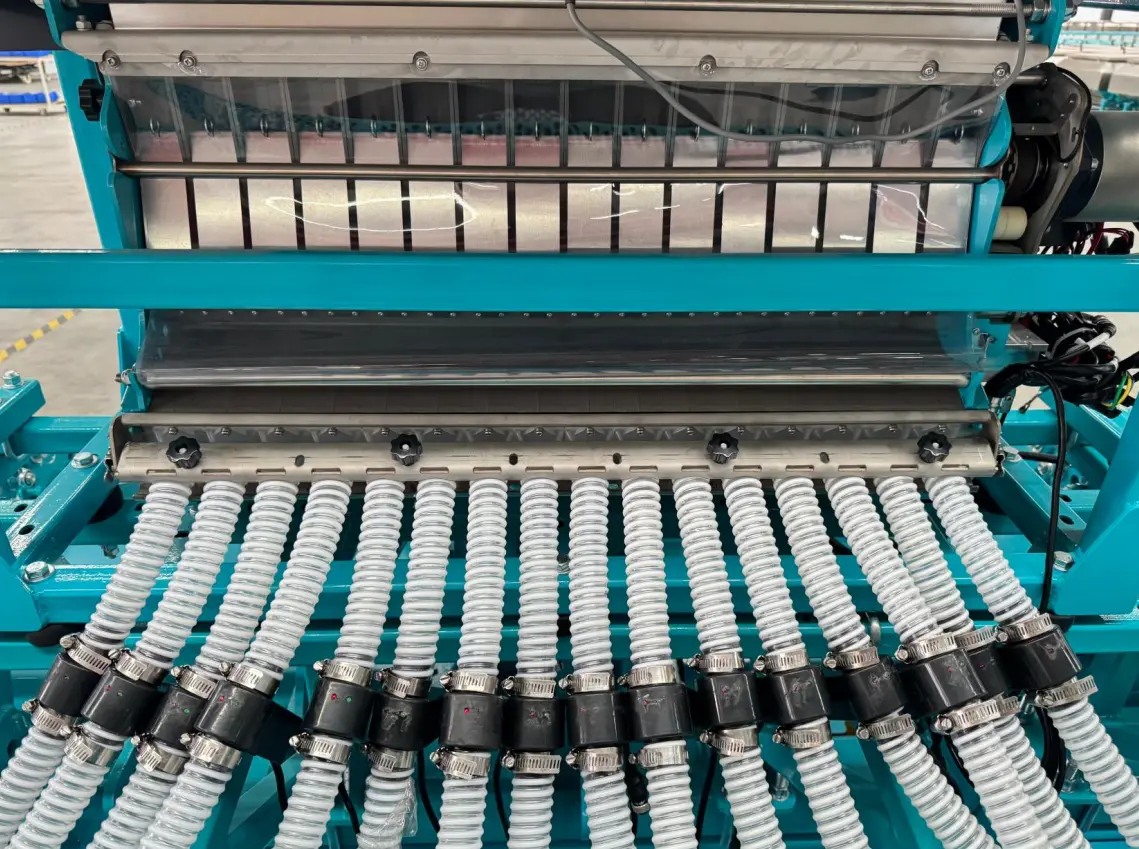

SEED PIPE MONITORING(OPTIONAL)

Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet. Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.

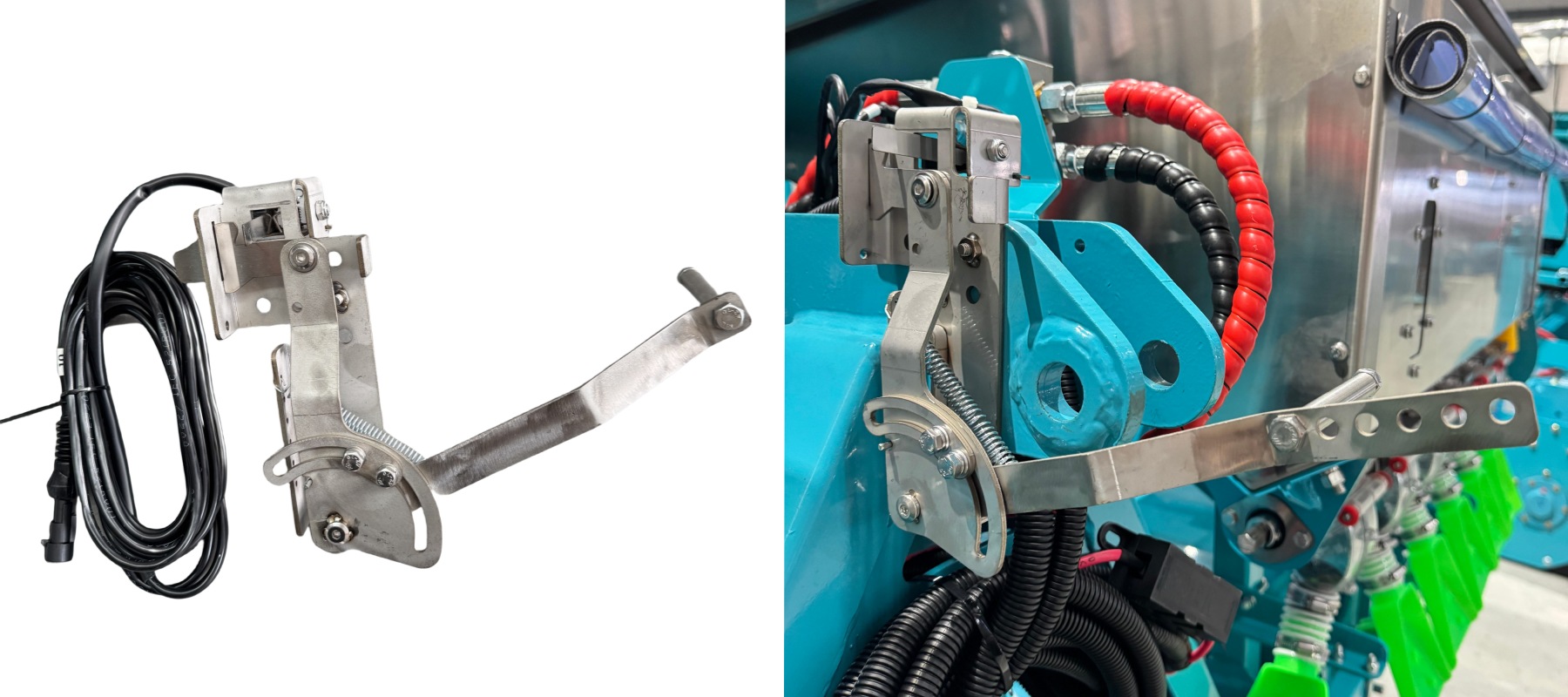

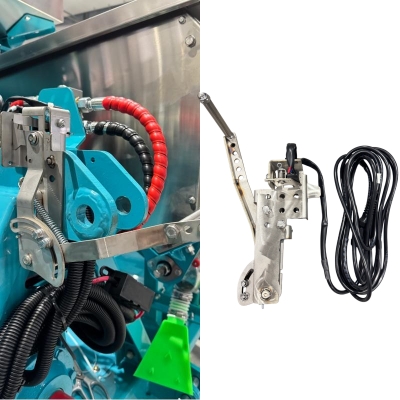

LIFT PULL SWITCH KIT(OPTIONAL)

This sensor connects the seeder, the sowing shaft of the seeder can automatically work and stop when the implements are lifted or lowered. The entire switch is made of stainless steel and mounted on the upper link of 3-point,when the implements lifted,the PTO shaft presses the tie rod, which pulls the connecting rod to pull the switch to switch off and seeder stop sowing, however, if implements lowered,the connecting rod resets and the switch switches on and seeder sowing again.

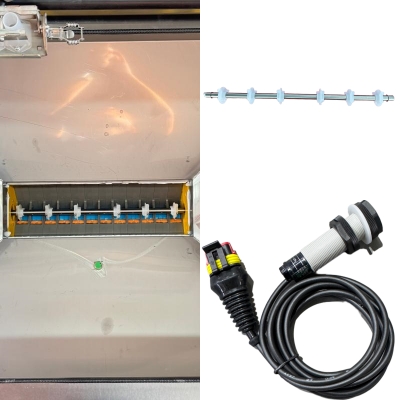

AGITATOR WITH SEED LEVEL SENSOR

Seed agitator fitted standard above the roller shaft to avoid any bridging of seed,which can also ensure an efficient and gentle flow of seeds.Inside the hopper there is also a seed level sensor connected to the control box and also a allowing quick and easy view of seed levels.

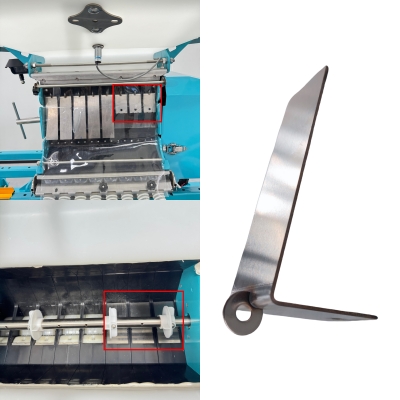

OUTLETS ARE BLOCKED AND OPENED INDEPENDENTLY

The seeder has a specially designed L-shaped plug patch, when the long part of the patch is inserted into the seeder,The corresponding outlet will be blocked and no seeds will be discharged. Otherwise,when the short part of the patch is inserted into the seeder,The corresponding outlet will be open and seeds will be discharged again.

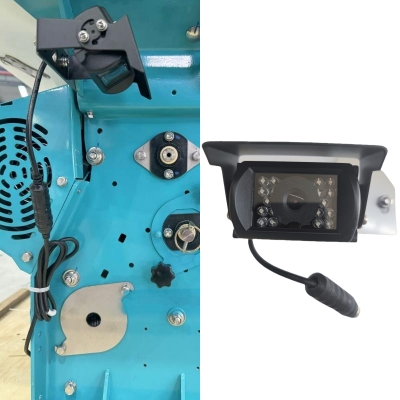

CAMERA

Monitor the seeding process in real time on the control tablet.

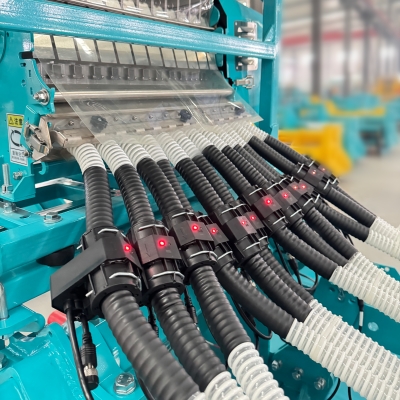

SEED BLOCKAGE SENSORS

We came to the conclusion that without sensors for clogging of the seed tubes it is impossible to organize continuous, skip-free sowing. They are therefore included as standard on every seed drill. Information about clogging of the seed tube is displayed on the tablet.

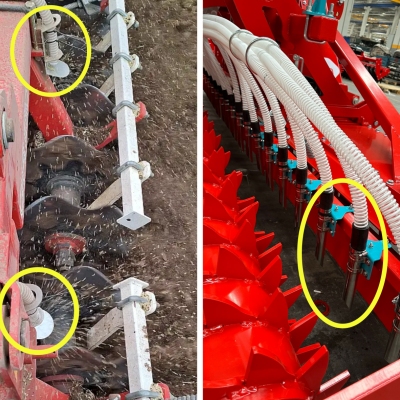

BROADCAST OR ROW SOWING

The seeder ensures uniform distribution of seeds regardless of wind conditions. The standard equipment of the seeder includes 8/12/16/20/24 partitions with U-shaped stainless steel brackets (bumpers), which are used for broadcast sowing. When sowing in rows (optional), instead of bumpers, stainless steel outlets in the form of tubes are installed at the end of the seed tubes.

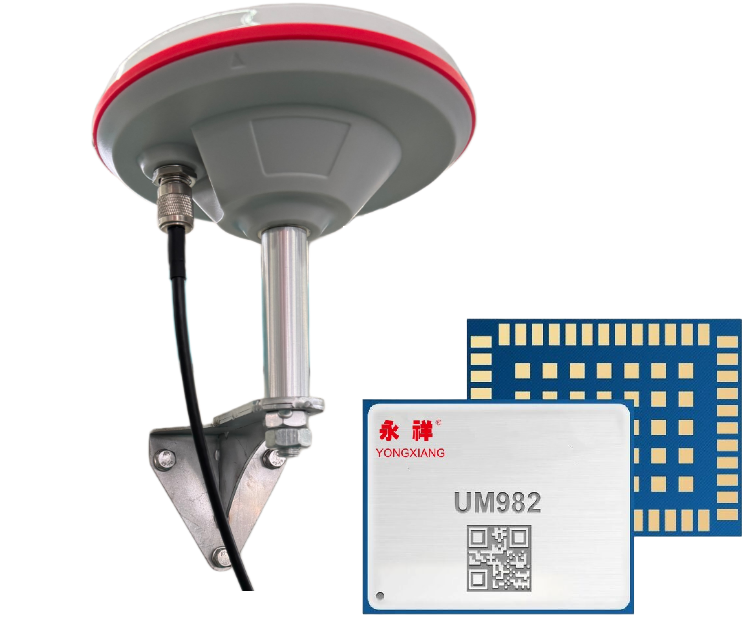

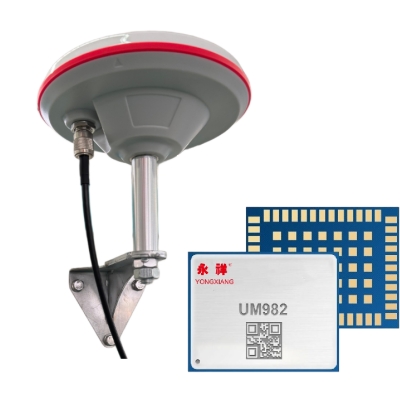

GPS POSITIONING CHIP

Locate the position of the seeder and watch the sowing situation remotely,you can monitor seeding quality of the seeder. If you can see where you missed the seeding after sowing,then you can reseeding in time.
