YongXiang
The exact amount of seed applied is ensured by a correctly selected shaft, precise synchronization of the speed of the metering shaft and the desired value of the seeding rate.

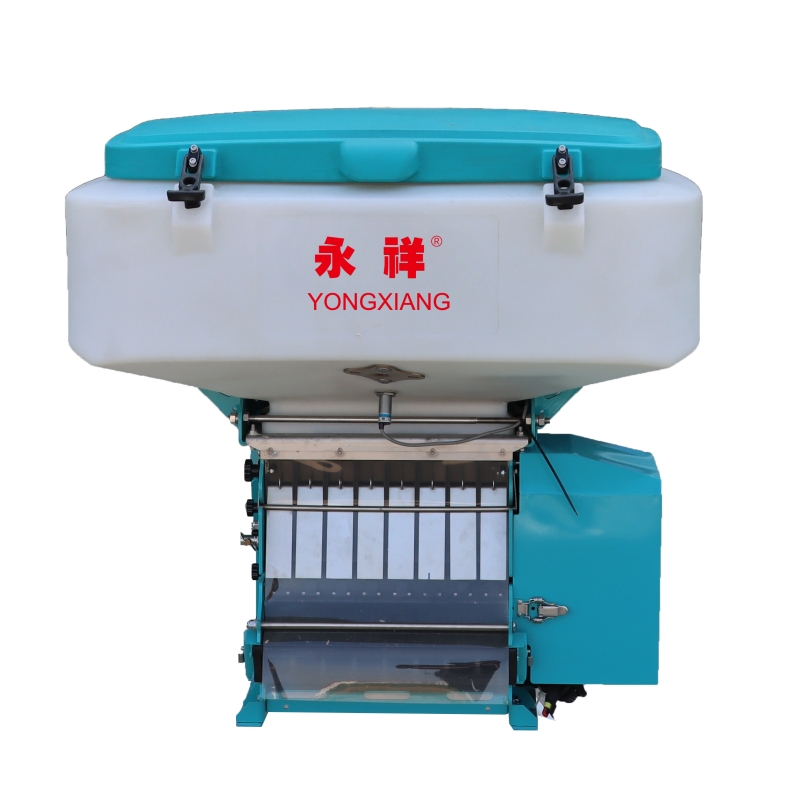

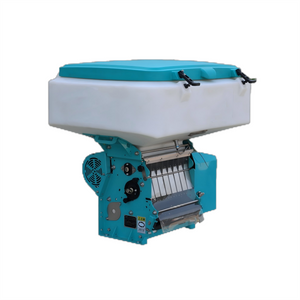

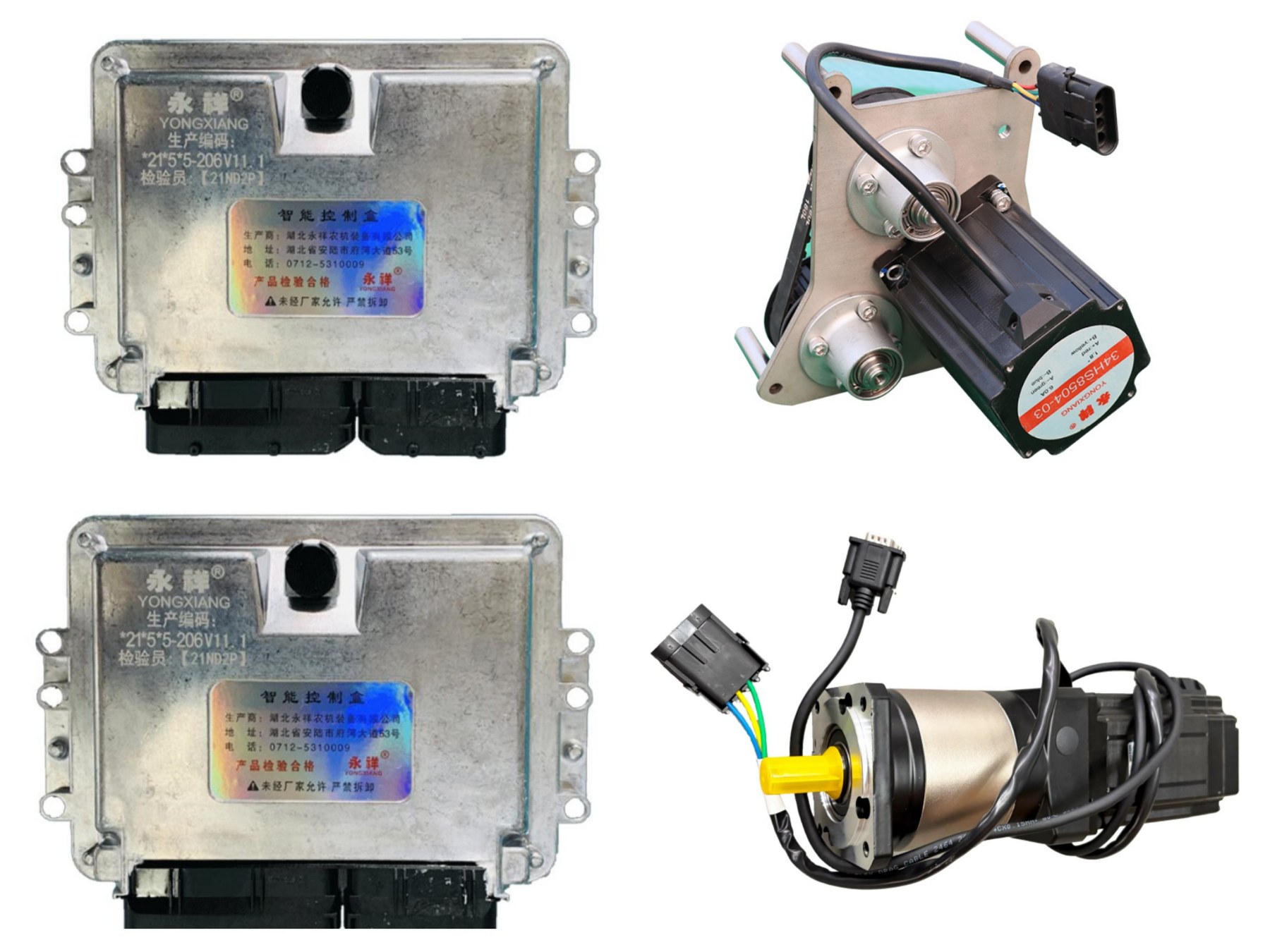

The YongXiang seeder is equipped with a 12V stepless electric motor(for 8/12/dual 12 rows) or brushless motor(for 16/20 rows), which is continuously monitored and adjusted by the central control system to continuously ensure a constant seeding rate.

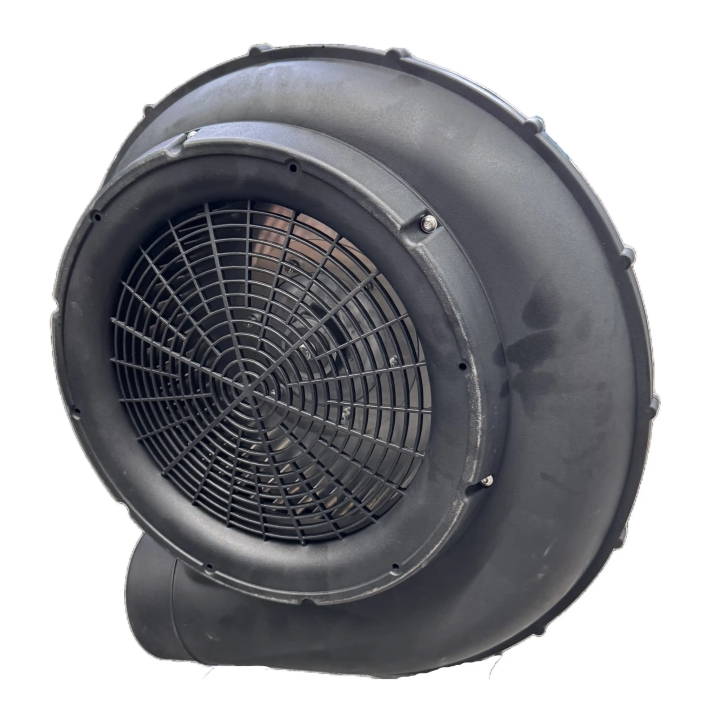

Two 12V electric fans create a powerful air flow that instantly transports seeds through the seed tubes to the baffles or pipe tubes, ensuring an even supply of seeds. The fans are protected by an air intake mesh that prevents the entry of straw and debris.
If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm
Seed pipe monitoring(optional)

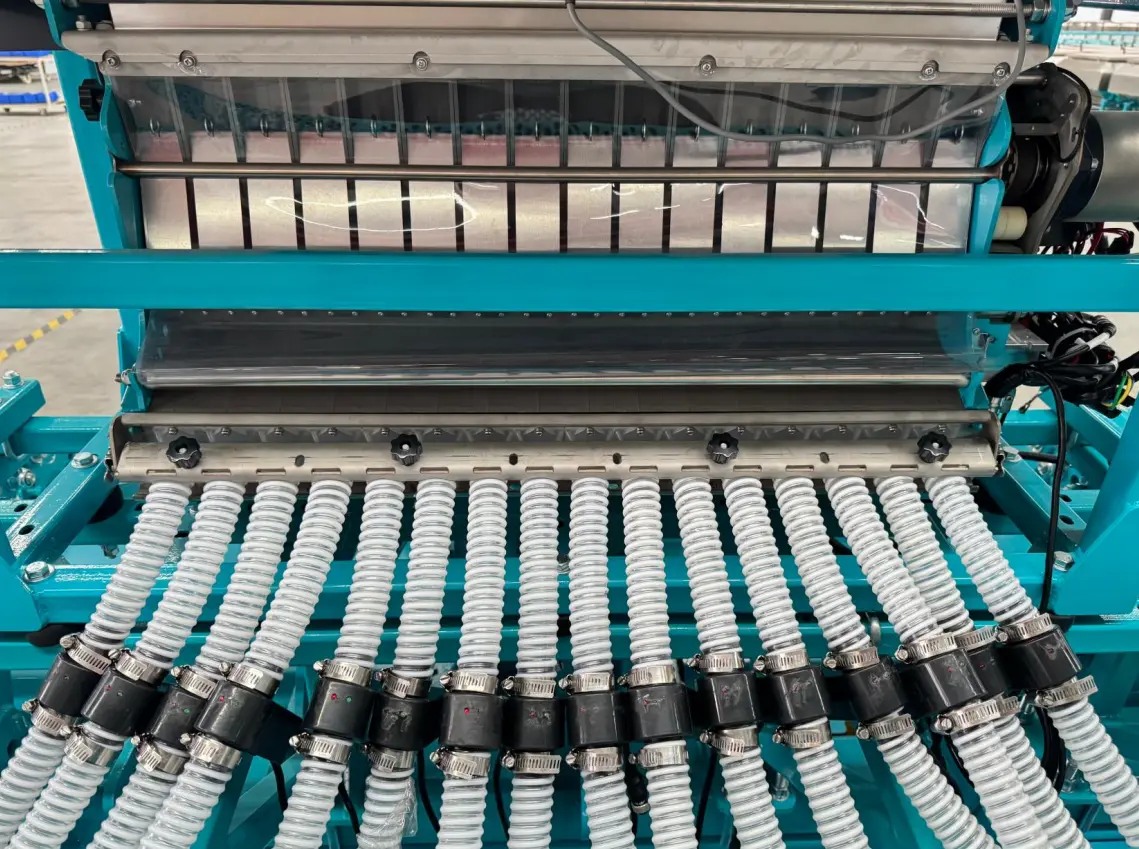

Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is

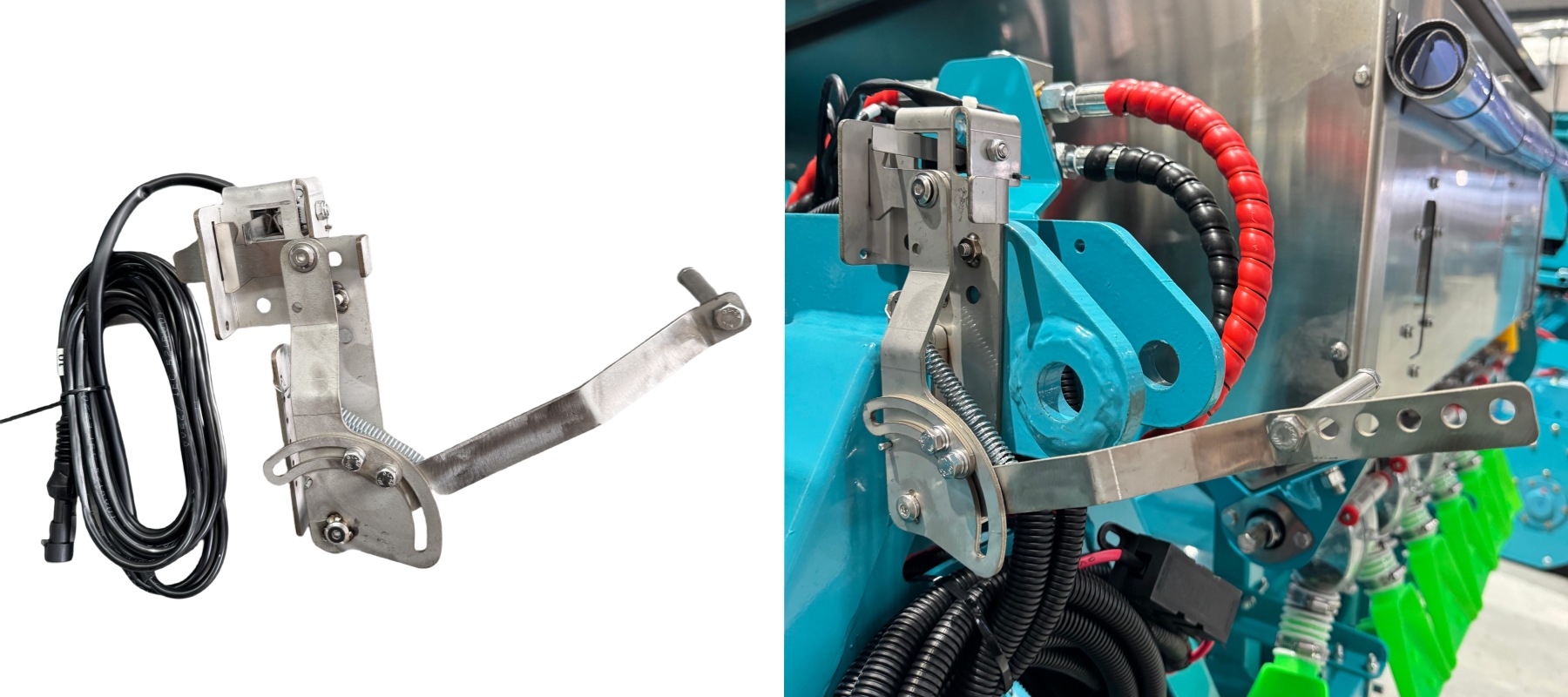

Lift pull switch kit(optional)
This sensor connects the seeder , the sowing shaft of the seeder can automatically work and stop when the implements are lifted or lowered. The entire switch is made of stainless steel and mounted on the upper link of 3-point, when the implements lifted,the PTO shaft presses the tie rod, which pulls the connecting rod to pull the switch to switch off and seeder stop sowing,however, if implements lowered,the connecting rod resets and the switch switches on and seeder sowing again.

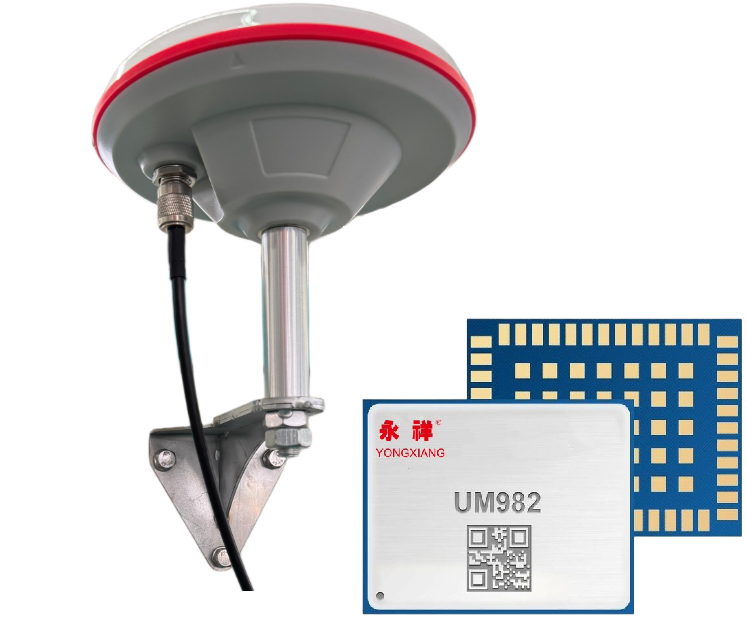

GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time

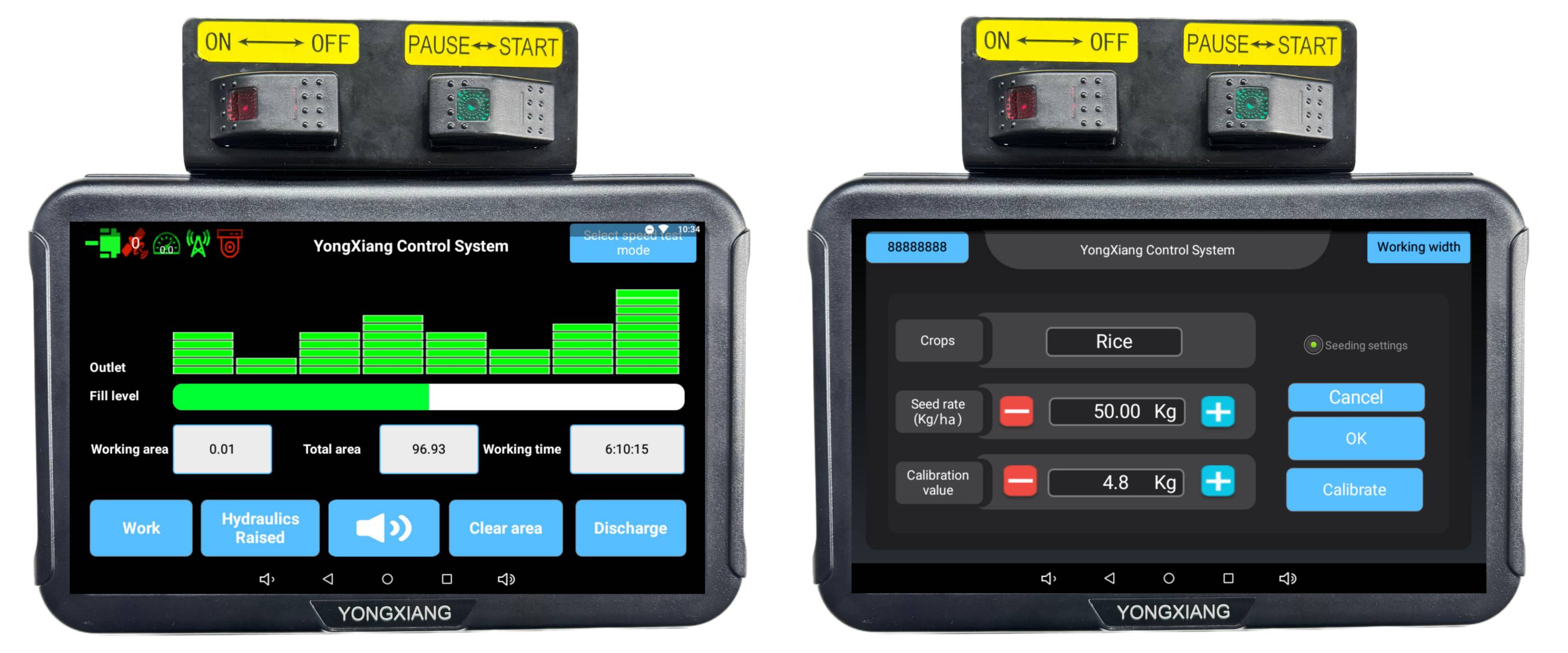

Monitor the seeding process in real time on the console.

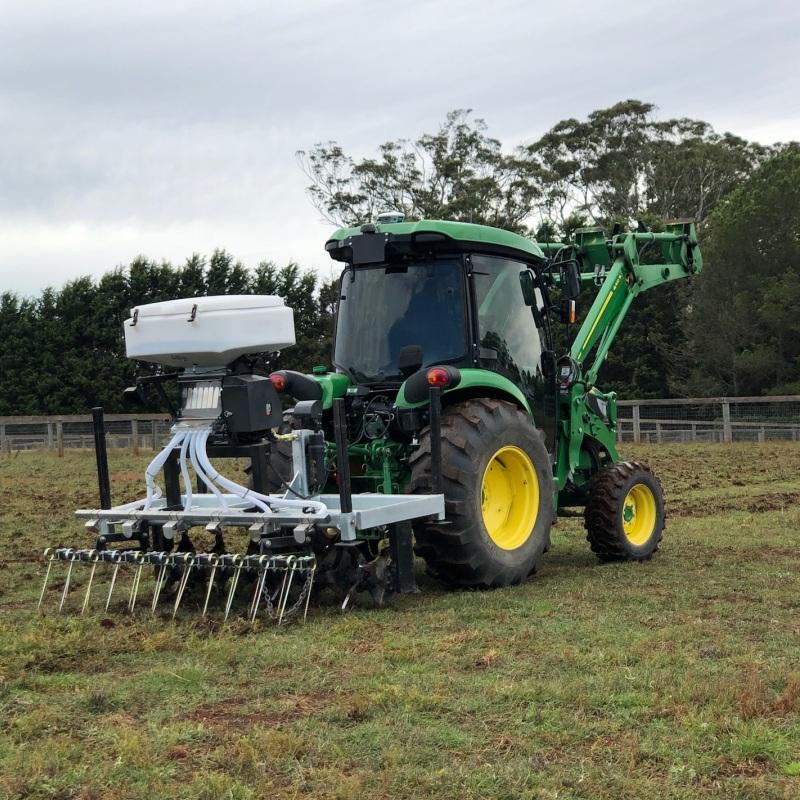

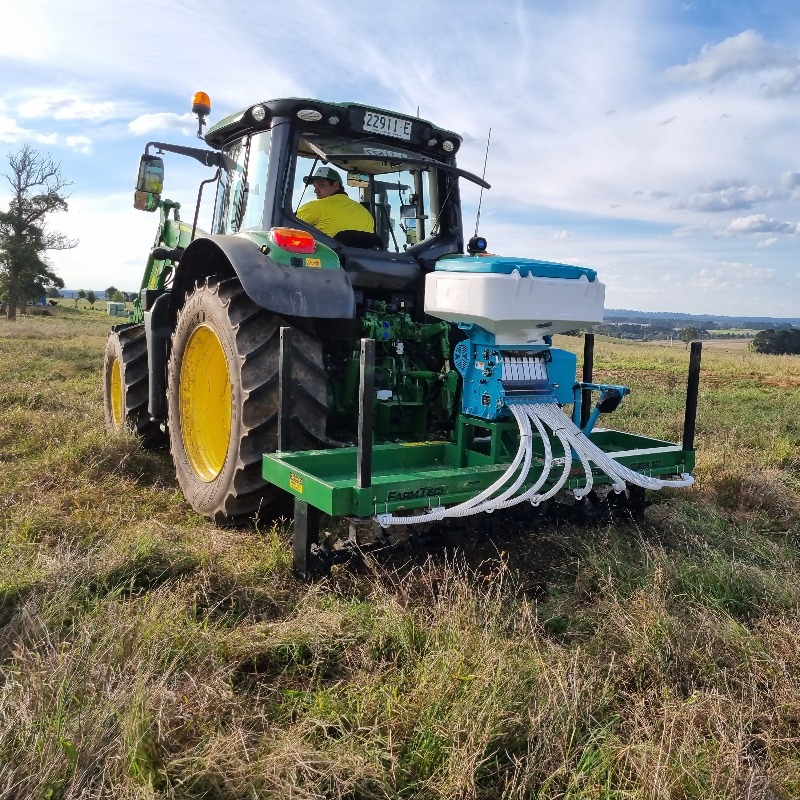

Broadcast sowing
The exact amount of seed applied is ensured by a correctly selected shaft, precise synchronization of the speed of the metering shaft and the desired value of the seeding rate.
The YongXiang seeder is equipped with a 12V stepless electric motor(for 8/12/dual 12 rows) or brushless motor(for 16/20 rows), which is continuously monitored and adjusted by the central control system to continuously ensure a constant seeding rate.
Two 12V electric fans create a powerful air flow that instantly transports seeds through the seed tubes to the baffles or pipe tubes, ensuring an even supply of seeds. The fans are protected by an air intake mesh that prevents the entry of straw and debris.
If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm
Seed pipe monitoring(optional)
Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is
Lift pull switch kit(optional)
This sensor connects the seeder , the sowing shaft of the seeder can automatically work and stop when the implements are lifted or lowered. The entire switch is made of stainless steel and mounted on the upper link of 3-point, when the implements lifted,the PTO shaft presses the tie rod, which pulls the connecting rod to pull the switch to switch off and seeder stop sowing,however, if implements lowered,the connecting rod resets and the switch switches on and seeder sowing again.
GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time
Monitor the seeding process in real time on the console.
Broadcast sowing
Advantages:
1. Precision pneumatic seeder for all types of grass seeds,alfalfa,ryegrass,clover,Kale etc in total coverage. Ideal equipment for the sowing of grass seeds with broadcast seeding.
2. Precise dosing and precise lateral distribution over the entire working width.
3. Installation options for most implements, such as seeders, machines for processing individual grain crops, implements for agricultural maintenance, implements for tillage, sprayers etc.
4. Easy setup and convenient calibration test using smart tablet app.
Design features:
1. Intelligent tablet application precisely controls the seeding volume.
2. Electrically operated dosing system (various interchangeable models depending on the seed to be sown) that allows sowing a range of doses from 1 to 300 kg/ha.
3. Pneumatic distribution through an electrically operated turbine with 8/12/16/20/24 outputs that allow working up to 8 meters wide(12m with hydraulic fan), depending on the specific weight of the seed.
4. Equipped with a blower driven by a dual 12-volt electric motor or with a hydraulic fan(optional).
5. Working speed of up to 15-20 km/h,equipped with a 10 inch tablet for calibration, control of sowing dose and air flow etc.
6. The shaft roller is driven by a stepper motor(or brushless motor).
7. The air flow evenly delivers the seeds into flexible plastic hoses.
8. Radar control synchronizes tractor speed and seed rate for uniform material application regardless of tractor speed.
9. Multiple seeding rollers (optional), low tank level sensor alarm.
10. Rugged design, easy to operate and install on most implements.
Standard equipment:
(1) 10 inch control tablet
(2) speed radar
(3) control box
(4) stepper motor(brushless motor)
(5) electric fan
(6) motor control box
(7) booster
(8) Relay
(9) 30 meters of hose
(10) calibration cloth bag, calibration scale,sowing shaft
(11) sensors-fill level sensor ,blockage sensor, motor Sensor
(12) camera to monitor the working status of sowing shaft
(13) broadcast heads or drilling heads
(14) seed agitator
(15) foreign object sieve
(16) boat switch
(17) L-shaped Plug
(18) wiring harness-81P wiring harness,40P wiring harness,serial port screen wiring harness-6m,power harness-4.6m
(19) hydraulic fan(optional)
(20) seed pipe monitoring(optional)
(21) lift pull switch kit(optional)
