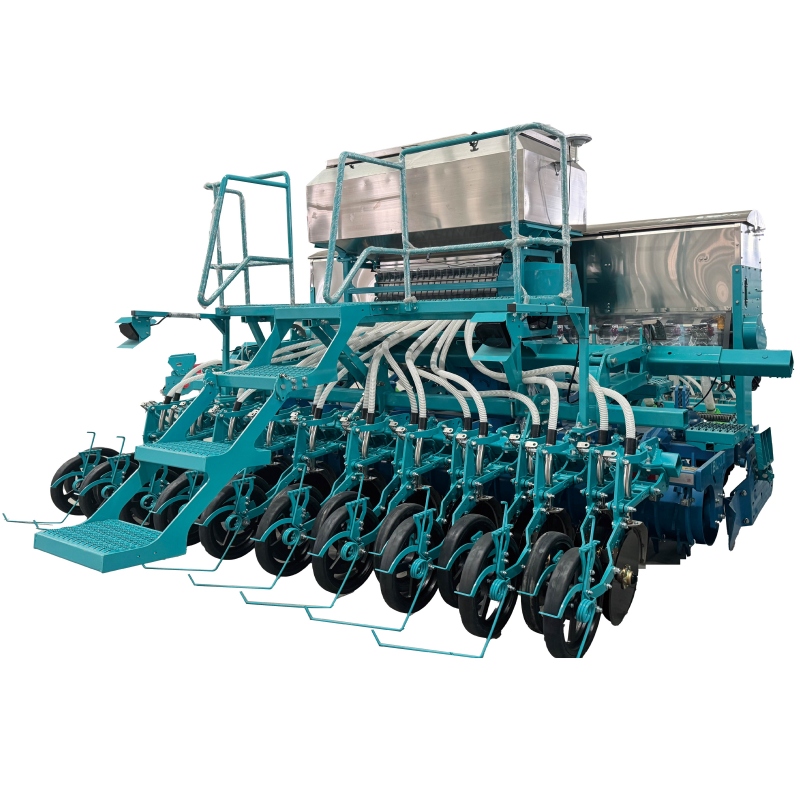

2BFG-FL/FL-F Series
·Radar for determining speed.
·Soil tillage implement(seeder,power harrow,ditching disc,compacting roller,parallel four-bar linkage

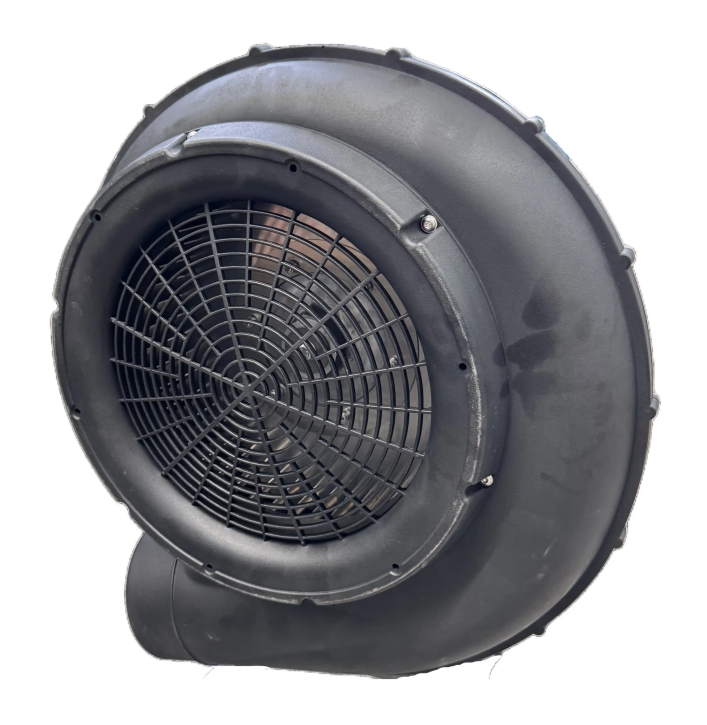

If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm

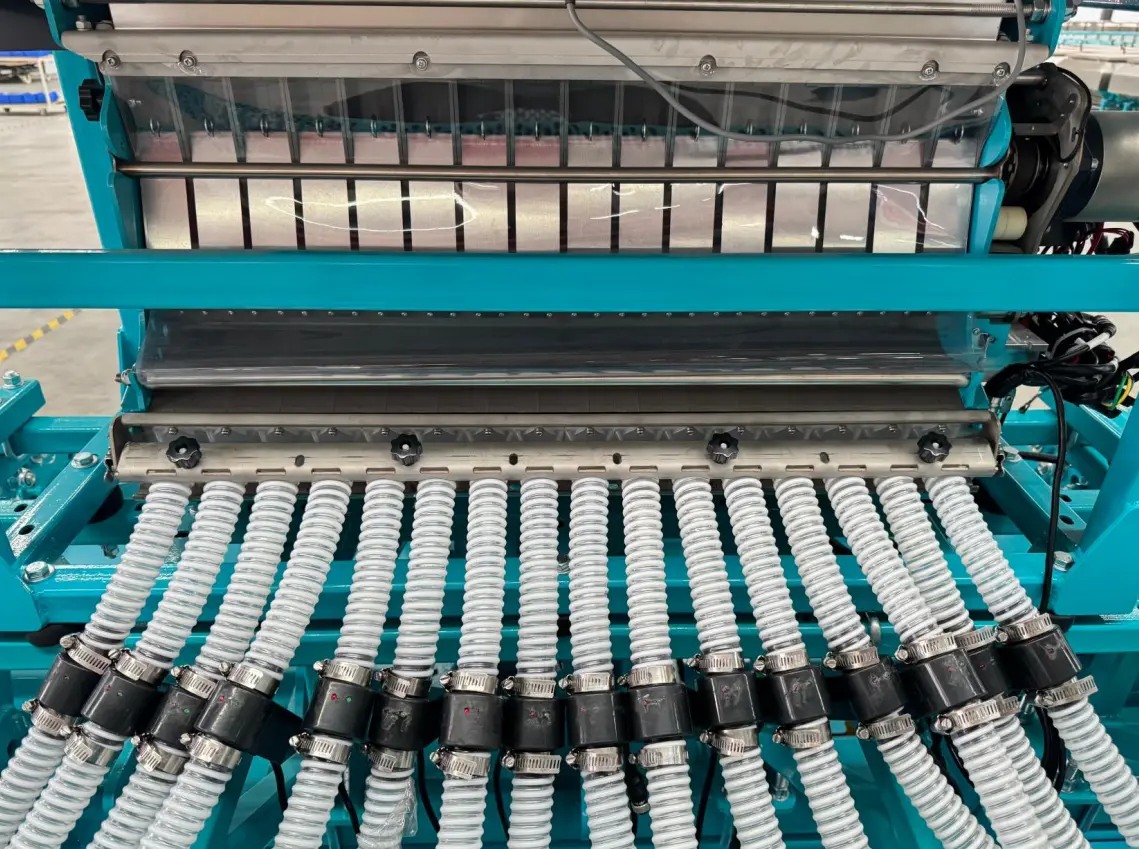

Seed pipe monitoring(optional)
Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.

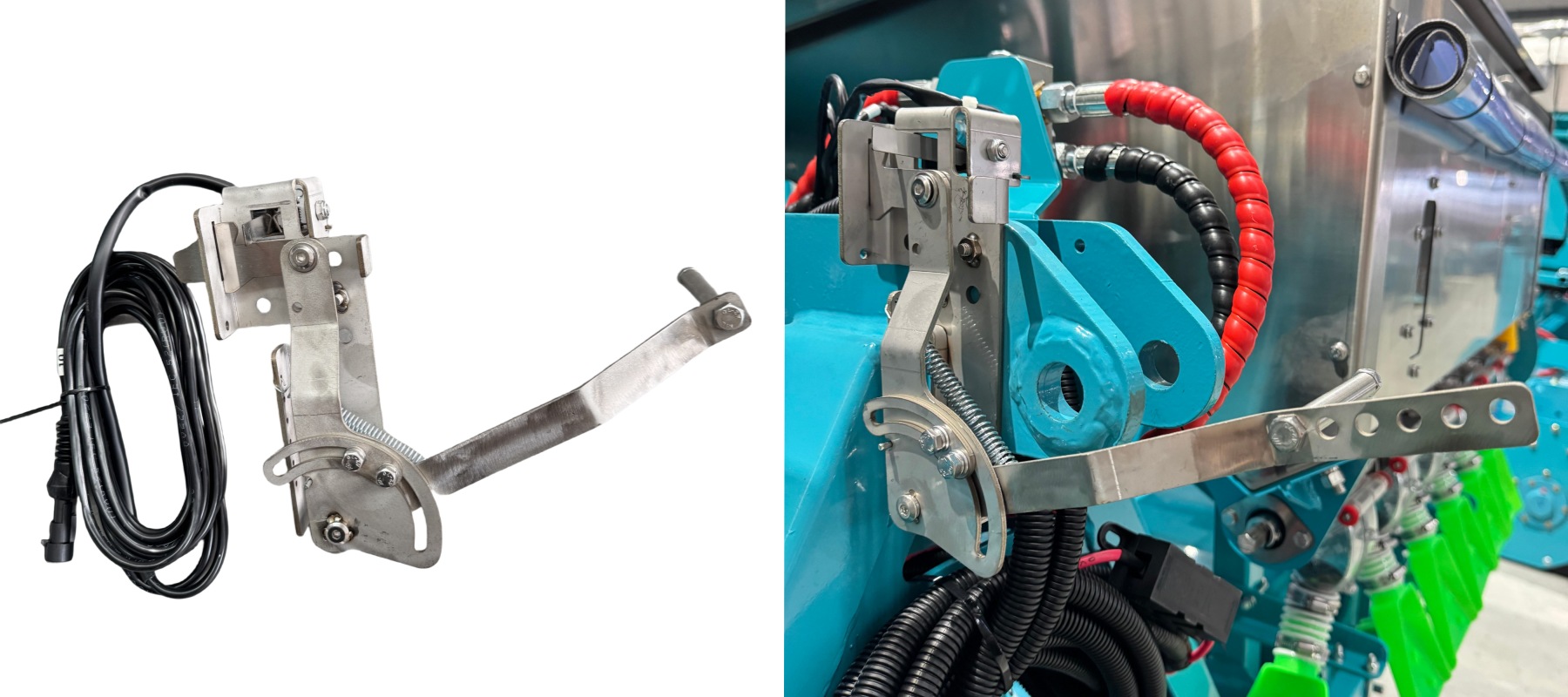

Lift pull switch kit(optional)
This sensor connects the seeder , the sowing shaft of the seeder can automatically work and stop when the implements are lifted or lowered. The entire switch is made of stainless steel and mounted on the upper link of 3-point, when the implements lifted,the PTO shaft presses the tie rod, which pulls the connecting rod to pull the switch to switch off and seeder stop sowing,however, if implements lowered,the connecting rod resets and the switch switches on and seeder sowing again.

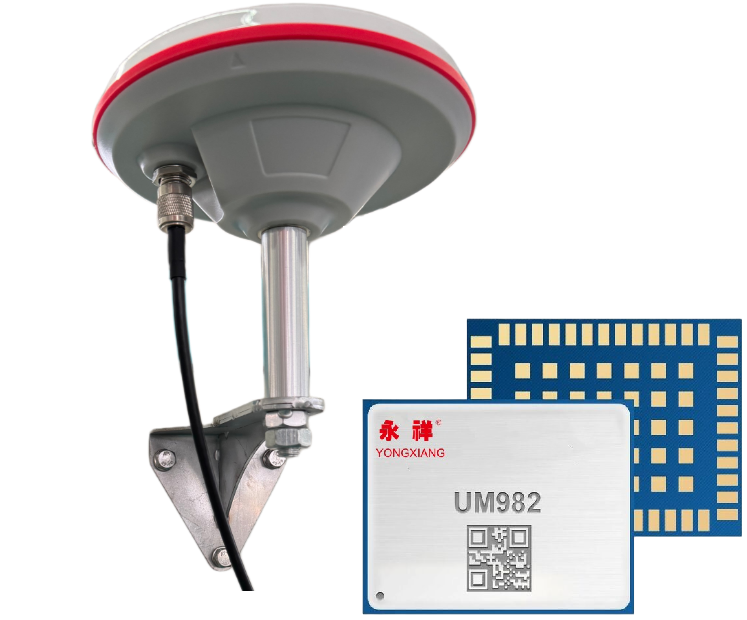

GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time

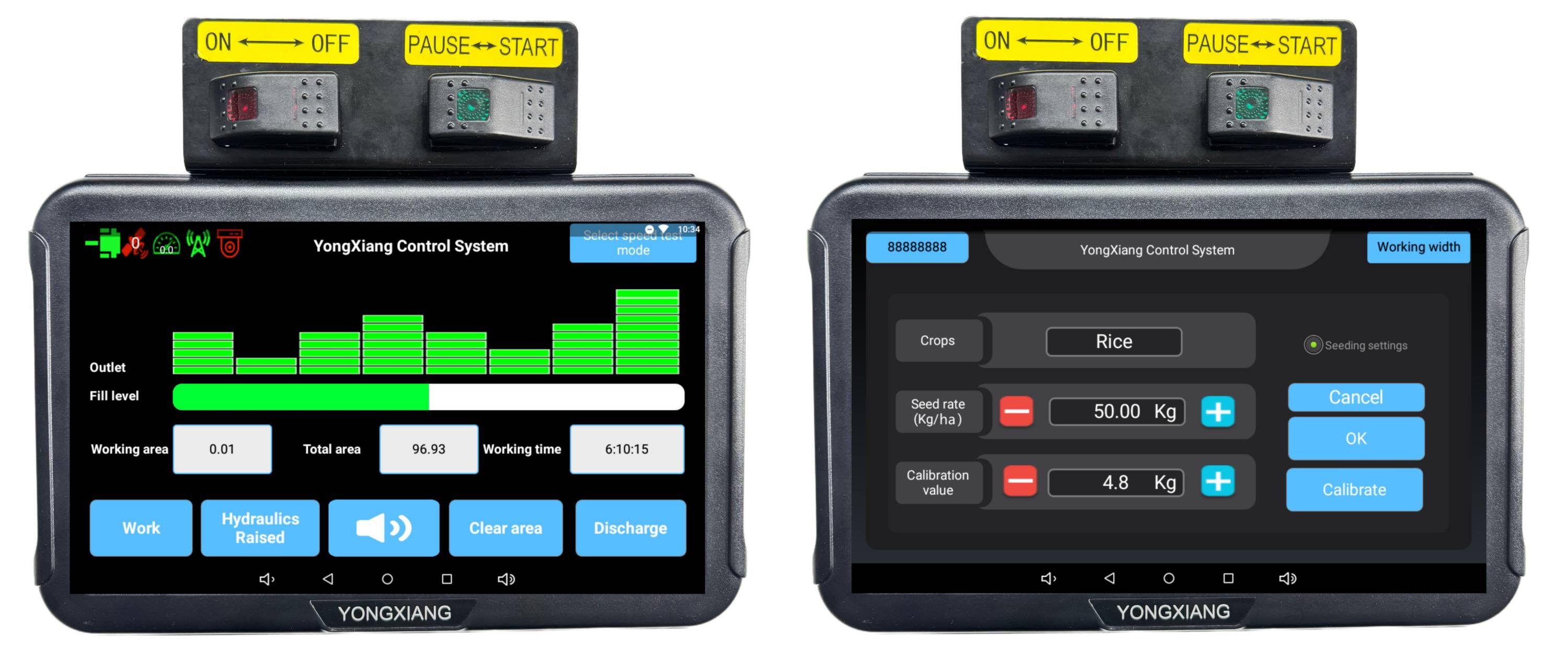

Monitor the seeding process in real time on the console.

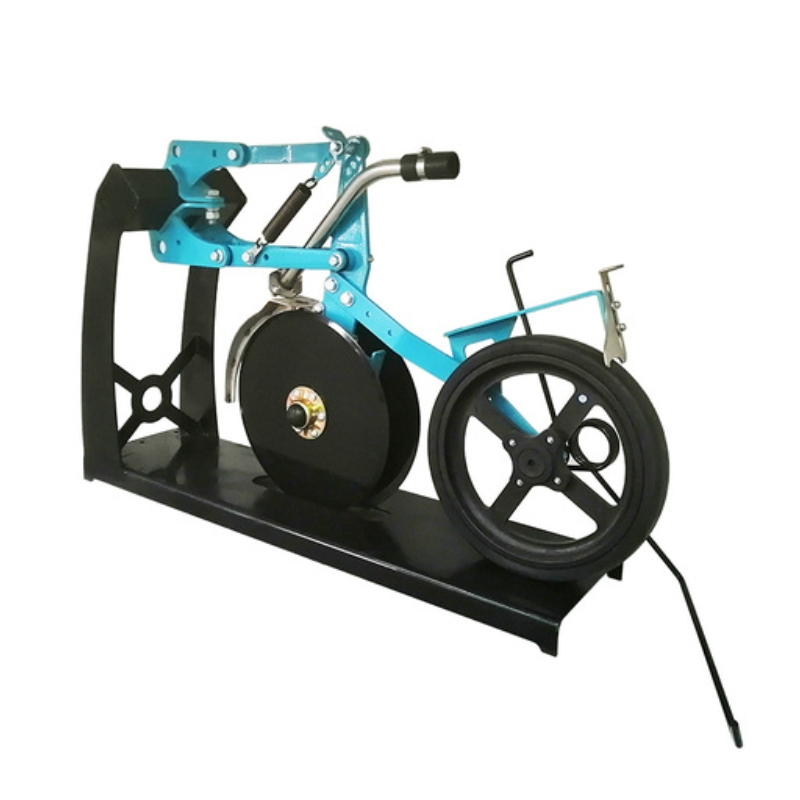

Double disc coulter
The double disc coulter with a rubber-tyred depth control wheel places seeds consistently and precisely at the same depth even in changing soil conditions and at high ground speeds.
Seeds are then pressed into the soil by the depth control wheel to ensure optimum soil contact and to support rapid germination as a result of the optimum water discharge.
The uncompacted areas between crop rows reduce puddling and erosion.
Broadcast (fan) or row sowing
·Radar for determining speed.
·Soil tillage implement(seeder,power harrow,ditching disc,compacting roller,parallel four-bar linkage
If the air output of the electric fan is not sufficient, the hydraulic fan is the right choice. It is suitable for spreading over large working widths or high spread rates.
Max. required pressure: 180 bar
Max. required oil quantity: 40L/min
Speed: 4500rpm
Seed pipe monitoring(optional)
Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.
Lift pull switch kit(optional)
This sensor connects the seeder , the sowing shaft of the seeder can automatically work and stop when the implements are lifted or lowered. The entire switch is made of stainless steel and mounted on the upper link of 3-point, when the implements lifted,the PTO shaft presses the tie rod, which pulls the connecting rod to pull the switch to switch off and seeder stop sowing,however, if implements lowered,the connecting rod resets and the switch switches on and seeder sowing again.
GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time
Monitor the seeding process in real time on the console.
Double disc coulter
The double disc coulter with a rubber-tyred depth control wheel places seeds consistently and precisely at the same depth even in changing soil conditions and at high ground speeds.
Seeds are then pressed into the soil by the depth control wheel to ensure optimum soil contact and to support rapid germination as a result of the optimum water discharge.
The uncompacted areas between crop rows reduce puddling and erosion.
Broadcast (fan) or row sowing
No. | Item | Unit | Design value | |||
1 | Model | / | 2BFG-16(250)FL500 | 2BFG-20(300)FL600 | 2BFG-16(250)FL-F500 | 2BFG-20(300)FL-F600 |
2 | Structure Type | / | 3-point linkage mounted | |||
3 | Supporting Power | kw/HP | 117-132(160-180) | 132-147(180-200) | 132-147(180-200) | 147-162(200-220) |
4 | Dimension(Lxwxh) | mm | 3115x2650x2300 | 3115x3150x2300 | 3115x2650x2300 | 3115x3150x2300 |
5 | Matching Power Output Shaft Speed | r/min | 1000 | |||
6 | Spindle Speed | r/min | 421 | |||
7 | Working Speed Range | km/h | 7-10 | |||
8 | Working Width | cm | 250 | 300 | 250 | 300 |
9 | Weight | kg | 2620 | 2960 | 3480 | 3580 |
10 | Harrow Depth | cm | 5-20 | 5-20 | ||
11 | Harrow Groups Qty | pair | 10 | 12 | 10 | 12 |
12 | Harrow Teeth Qty | pcs | 20 | 24 | 20 | 24 |
13 | Harrow Tooth Spacing | cm | 24.5 | 24.5 | ||
14 | Sowing Method | / | Drill sowing | Drill sowing | ||
15 | Fertilization Method | / | Spreading fertilizer | Spreading fertilizer | ||
16 | Sowing Depth | mm | 0-50 | 0-50 | ||
17 | Sowing Accuracy | % | ≧95 | ≧95 | ||
18 | Sowing Row Spacing | cm | 15 | 15 | ||
19 | Seeder Outlet | / | 1-16(Adjustable) | 1-20(Adjustable) | 1-16(Adjustable) | 1-20(Adjustable) |
20 | Seed Hopper Capacity | L | 500 | 600 | 500 | 600 |
21 | Fertilizer Apparatus Outlet | pcs | / | / | 1-10(Adjustable) | 1-14(Adjustable) |
22 | Fertilizer Hopper Capacity | L | 560(280*2) | 700(350*2) | 560(280*2) | 700(350*2) |
23 | Seed Rate Adjustment Method | / | Realized precision sowing through intelligent precision electric drive control,system and touch screen tablet control,digital intelligent input,radar speed measurement synchronous control,detection automatic variable adjustment | Realized precision sowing and fertilization through intelligent precision electric drive control,system and touch screen tablet control,digital intelligent input,radar speed measurement synchronous control,detection automatic variable adjustment | ||
24 | Sowing Transmission Type | / | Stepper motor | Stepper motor | ||
25 | Speed Measurement Method | / | Speed radar | Speed radar | ||
26 | Blower Fan Type | / | Electric | Electric | ||
27 | Soil Cover Type | / | Spring teeth | Spring teeth | ||
28 | Compacting Equipment Type | / | Compacting roller | Compacting roller | ||
29 | Single Profiling Mechanism | / | Parallel four-bar linkage | Parallel four-bar linkage | ||
