Side Deep Placement of Fertilizer Applicator Mounted on Transplanter 2BDGS-8/12

Advantages:

1. Precision side deep placement of fertilizer can save fertilizer to the maximum extent while ensuring that the seedlings get the maximum nutrition, and maintain the fertility of the soil to the maximum extent.
2. Precise dosing and precise lateral distribution over the entire working width.
3. Easy setup and convenient calibration test using smart tablet app.

Design features:

1. 8 rows (75L/150L/350L hopper) row range: 1 to 8 outlets (optional)
10 rows (100L/300L hopper) row range: 1 to 10 outlets (optional)
12 rows (100L/300L hopper) row range: 1 to 12 outlets (optional)
2. Intelligent tablet app accurately controls fertilizing volume.
3. Adjustable fertilizer rate from 1 to 300 kg/ha.
4. Equipped with a blower driven by a dual 12-volt electric motor.
5. The shaft roller is driven by a stepper motor.
6. The air flow evenly delivers the fertilizer into flexible plastic hoses.
7. Radar control synchronizes tractor speed and fertilizer rate for uniform material application regardless of transplanter speed.
8. Multiple seeding rollers (optional), low tank level sensor alarm.
9. Rugged design, easy to operate
10.Working width: 1-3 m.

Quantity:
Availability:





Inquire

Model:
2BDGS-8/12

Standard equipment

·fertilizer applicator

·10" control console

·30 m seed lines.
·Standard seeding shaft for fertilizer.
·Cable for connecting to the battery.
·Calibration kit, electronic scales for weighing fertilizer.

·Radar for determining speed.

Fertilizer dosing mechanism (fertilizing shaft)

YongXiang seeders use different metering shafts even for different types of fertilizer. Correct selection of the shaft ensures accurate fertilizing dosage. We need to know the transplanter speed, working width and fertilizer rate, and then recommend the most suitable fertilizing shaft to achieve the highest fertilizing accuracy.. Replacing the fertilizing shaft for various fertilizer is carried out without the use of tools.

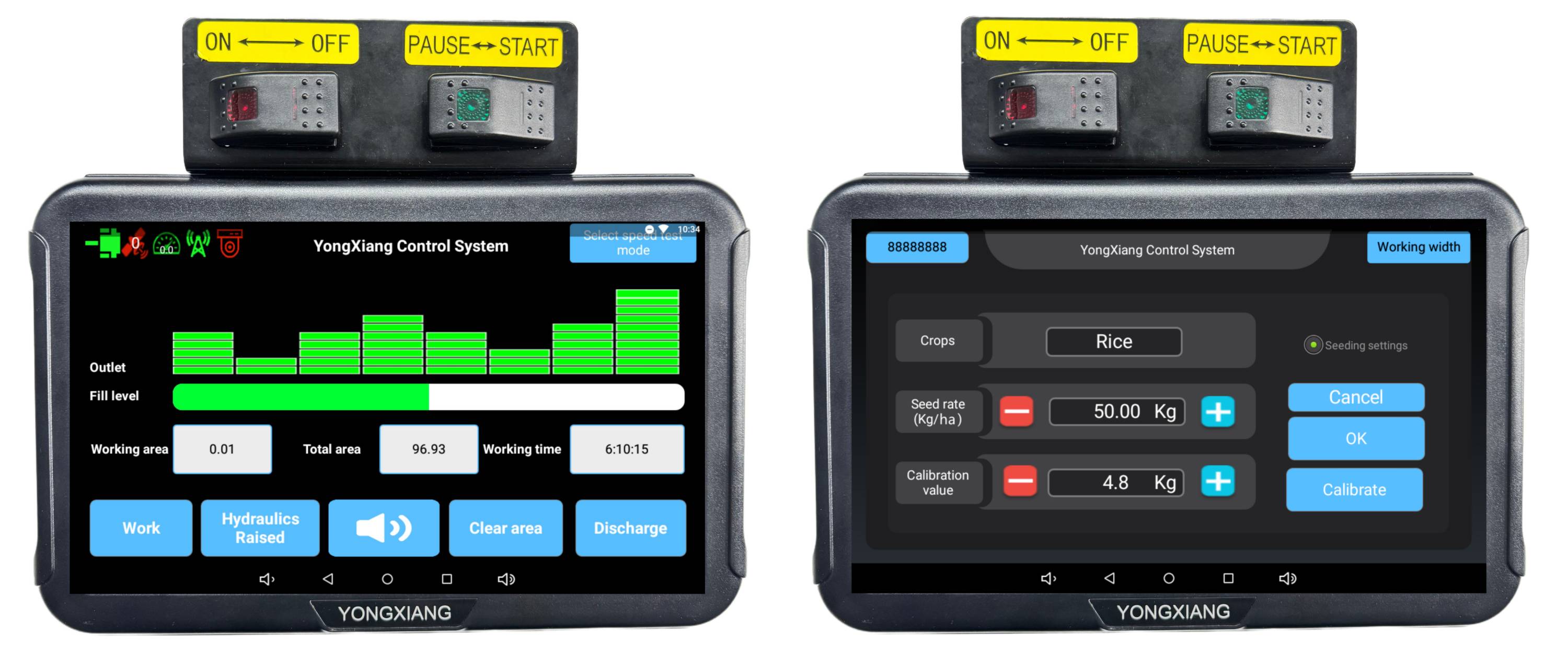

Application management console (tablet)

The large and contrasting 10-inch console allows the operator to monitor and adjust key planting parameters in any lighting conditions.
Simple operation, calibration, emptying of remaining material, monitoring the seed level in the hopper in real time.

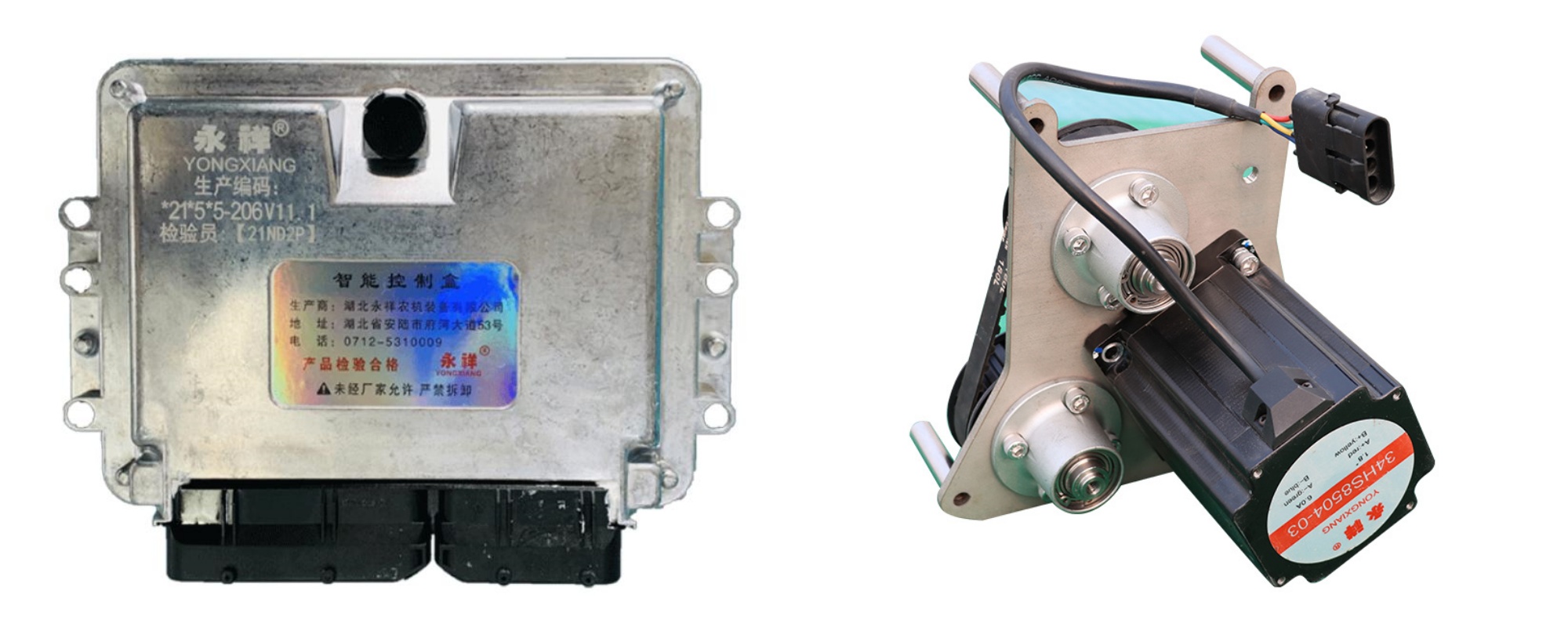

Control system and drive

The exact amount of seed applied is ensured by a correctly selected shaft, precise synchronization of the speed of the metering shaft and the desired value of the seeding rate.

The YongXiang seeder is equipped with a 12V stepless electric motor, which is continuously monitored and adjusted by the central control system to continuously ensure a constant seeding rate.

Electric fan (blower)

Two 12V electric fans create a powerful air flow that instantly transports seeds through the seed tubes to the baffles or pipe tubes, ensuring an even supply of seeds. The fans are protected by an air intake mesh that prevents the entry of straw and debris.

Radar sensor for measuring the speed of the seeder

YongXiang seed drills are equipped with a radar sensor that measures the forward speed and transmits the exact speed to the control console. This ensures synchronized material flow (seeding shaft rotation speed) regardless of whether you are slowing down or speeding up.

5de73bd0-d37c-48fe-a9de-b7fe3da87ba9 (1)

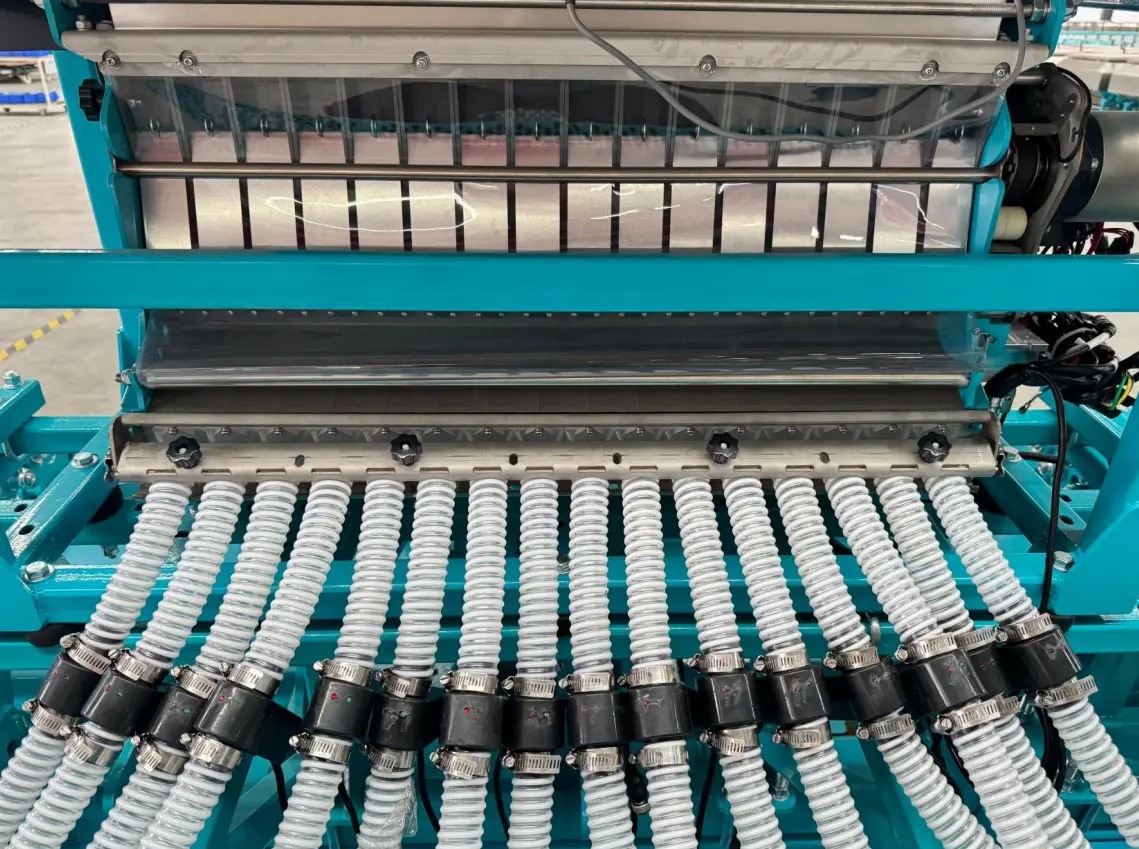

Seed pipe monitoring(optional)

Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages in the seed tube. Mounted directly below the discharging port, sensors monitor the seed flow in the seed pipes. Once missed sowing occurs or the pipe is blocked, it will be displayed immediately on the tablet.Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.

Agitator and seed level sensor

The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.

Independent locking and opening of outlets

The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.

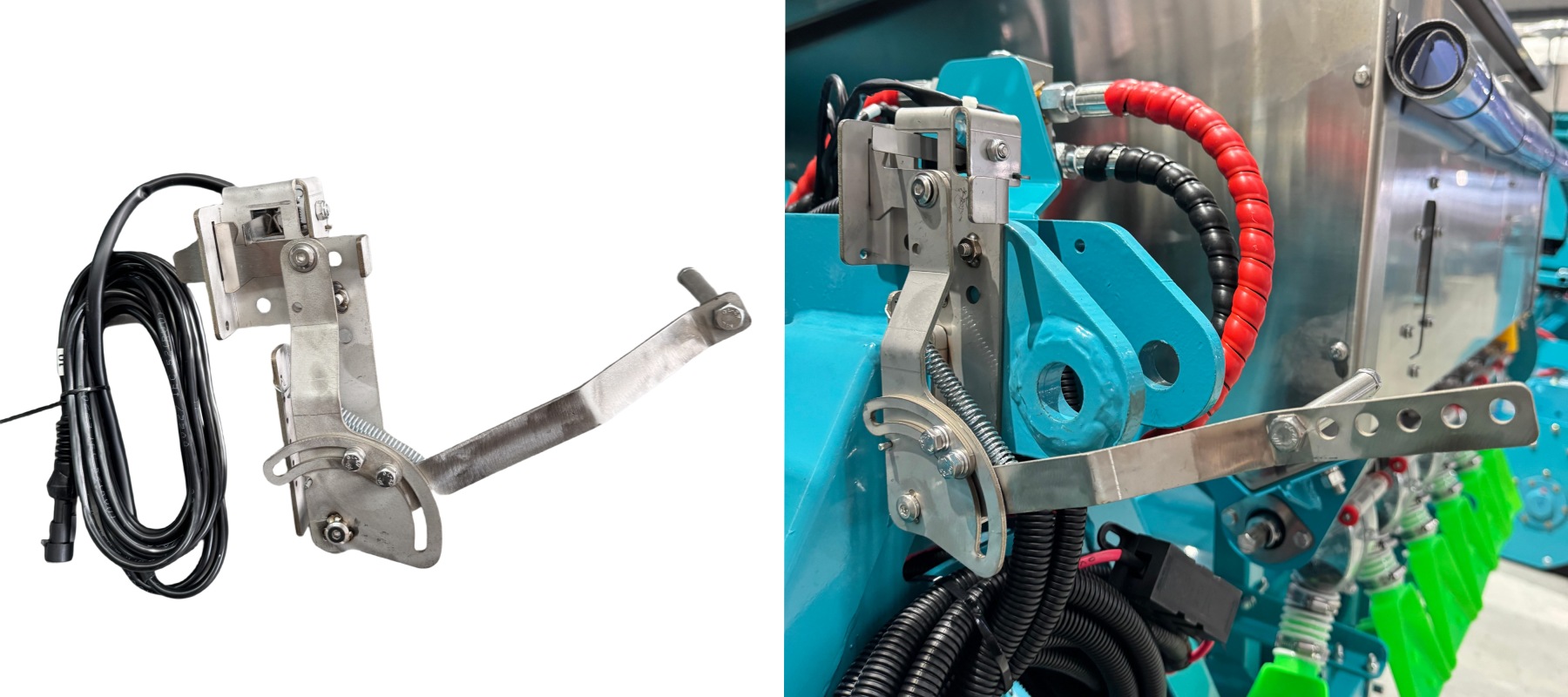

Lift pull switch kit(optional)

This sensor connects the seeder , the sowing shaft of the seeder can automatically work and stop when the implements are lifted or lowered. The entire switch is made of stainless steel and mounted on the upper link of 3-point, when the implements lifted,the PTO shaft presses the tie rod, which pulls the connecting rod to pull the switch to switch off and seeder stop sowing,however, if implements lowered,the connecting rod resets and the switch switches on and seeder sowing again.

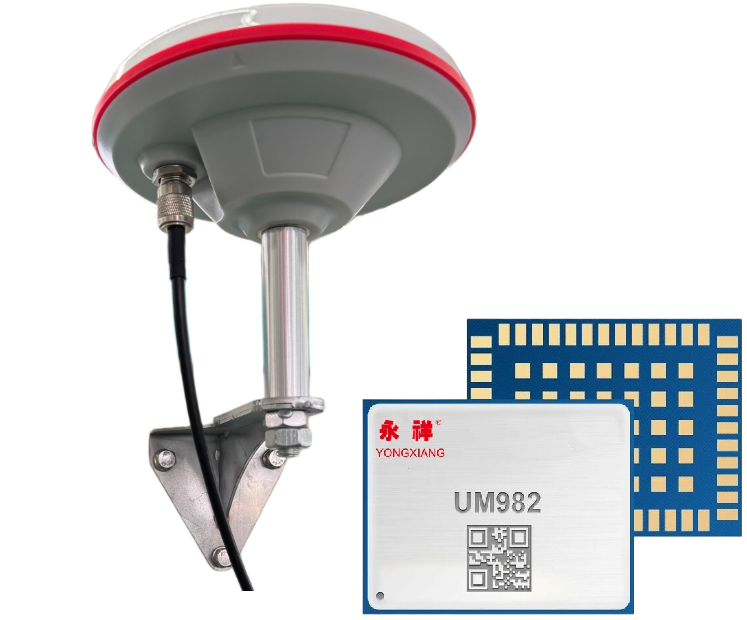

GPS Positioning Chip

Locate the position of the seeder and watch the sowing situation remotely in real time

Camera

Monitor the seeding process in real time on the console.

Seed tube clogging sensors

We came to the conclusion that without sensors for clogging of the seed tubes it is impossible to organize continuous, skip-free sowing. They are therefore included as standard on every seed drill. Information about clogging of the seed tube is displayed on the console.

Side Deep Placement of Fertilizer Applicator precision fertilizer applicator fertilizer spreader Pneumatic Fertilizer fertilizer spreader machine seeder and fertilizer applicator Side Deep Placement of Fertilizer Applicator machine

Related Products

Precision Direct Rice Seeder with Deep Placement of Fertilizer Applicator Monuted on Transplanter 2BDGS-08(D)/10(D)/12(D)(P)

Precision Direct Rice Seeder with Side Deep Placement of Fertilizer Applicator Mounted on Transplanter 2BDGS-08(D)/10(D)/12(D)(P)

Direct Rice Seeder Precision Rice Seeder Mounted on Wetland Tractor 2BDGS-08/10/12(T)

Item	Unit	Design value
Type NO.	/	2BDGS-8-L75	2BDGS-8-L150	2BDGS-8-L350	2BDGS-12-L100	2BDGS-12-L300	2BDGS-12S-L600
Hopper capacity	L	75	150	350	100	300	600
Outlets	/	8			12		Dual 12/24
Dimensions(LXWXH)	cm	72x52x83cm	84x79x86cm	106x92x114cm	86X50x83cm	114x78x100cm	186x137x115cm
Weight	kg	70	90	130	110	140	380
Blower fan	/	Dual 12 volt blower fans
Working width	m	Up to 6m
Power requirement	/	12 volts DC-25A Max			12 volts DC-50A Max
Hopper material	/	PE				Stainless steel	PE
Chassis material	/	Stainless chassis,powder coated
Hose length	m	30m					2x30m
Seeding shaft	pcs	1					2
Precise control box	/	√	√	√	√	√	√
Calibration bag,seed scale	/	√	√	√	√	√	√
Speed radar	/	√	√	√	√	√	√
Stainless steel agitator	/	√	√	√	√	√	√
Touch screen control tablet	/	√	√	√	√	√	√
Drill pipes or Spreading baffle kits	set	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√ (2 sets)
Fill level sensor	/	√	√	√	√	√	√
Seed blockage monitor	/	√	√	√	√	√	√
Missed sowing alarm	/	√	√	√	√	√	√
Foreign object sieve	/	√	√	√	√	√	√
Seeding shaft monitor camera	/	√	√	√	√	√	√
GPS positioning chip	/	√	√	√	√	√	√
Operating temp./storage temp	/	-10 to+50℃

Item	Unit	Design value
Type NO.	/	2BDGS-8-L75	2BDGS-8-L150	2BDGS-8-L350	2BDGS-12-L100	2BDGS-12-L300	2BDGS-12S-L600
Hopper capacity	L	75	150	350	100	300	600
Outlets	/	8			12		Dual 12/24
Dimensions(LXWXH)	cm	72x52x83cm	84x79x86cm	106x92x114cm	86X50x83cm	114x78x100cm	186x137x115cm
Weight	kg	70	90	130	110	140	380
Blower fan	/	Dual 12 volt blower fans
Working width	m	Up to 6m
Power requirement	/	12 volts DC-25A Max			12 volts DC-50A Max
Hopper material	/	PE				Stainless steel	PE
Chassis material	/	Stainless chassis,powder coated
Hose length	m	30m					2x30m
Seeding shaft	pcs	1					2
Precise control box	/	√	√	√	√	√	√
Calibration bag,seed scale	/	√	√	√	√	√	√
Speed radar	/	√	√	√	√	√	√
Stainless steel agitator	/	√	√	√	√	√	√
Touch screen control tablet	/	√	√	√	√	√	√
Drill pipes or Spreading baffle kits	set	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√(1 set)	√ (2 sets)
Fill level sensor	/	√	√	√	√	√	√
Seed blockage monitor	/	√	√	√	√	√	√
Missed sowing alarm	/	√	√	√	√	√	√
Foreign object sieve	/	√	√	√	√	√	√
Seeding shaft monitor camera	/	√	√	√	√	√	√
GPS positioning chip	/	√	√	√	√	√	√
Operating temp./storage temp	/	-10 to+50℃
