Pneumatic Grass Seeder for Precision Broadcast Seeding
Precise Pneumatic Seeding for Grass and Small Seeds
The YongXiang pneumatic grass seeder is designed for accurate and uniform broadcast seeding of grass seed and other small seeds across a wide working width.
With interchangeable metering shafts, variable-speed electric metering and pneumatic seed delivery, the system can be configured for different seed types and application rates. Available with 8, 12, 16, 20 or 24 outlets and hopper capacities from 75 to 600 litres, it can be matched to a wide range of agricultural implements.
The system is particularly suited to grass seed, alfalfa, ryegrass, clover and other small seeds where accurate metering and even lateral distribution are important.
Available in different hopper capacities and outlet configurations, the pneumatic grass seeder can be matched to compact implements for smaller operations as well as wider machines used on larger farms.
Precise Small-Seed Metering Designed for controlled metering of grass seed and other small seeds.
Flexible Metering Shafts Supports different seed types, sizes and application rates.
Uniform Broadcast Seeding Provides even seed distribution across the working width.
Radar Speed Synchronisation Helps maintain the selected application rate as forward speed changes.
Wide Working Width Options Available with different outlet configurations and hopper capacities.
Flexible Implement Integration Suitable for mounting on a range of agricultural implements.

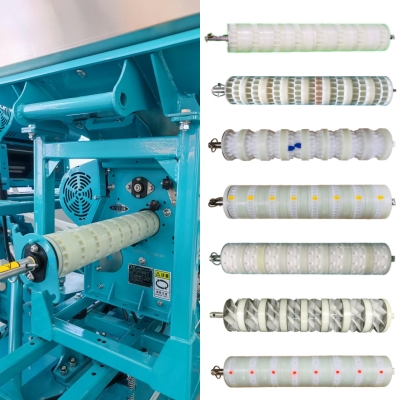

Interchangeable Metering Shafts for Grass Seed
Different metering shafts are available for different types and sizes of grass seed.
Selecting the appropriate metering shaft helps achieve accurate application, particularly when working with small seeds and low seeding rates.
The metering shaft can be changed without specialist tools, allowing the seeder to be quickly adapted when changing between grass seed, alfalfa, ryegrass, clover and other suitable seeds.

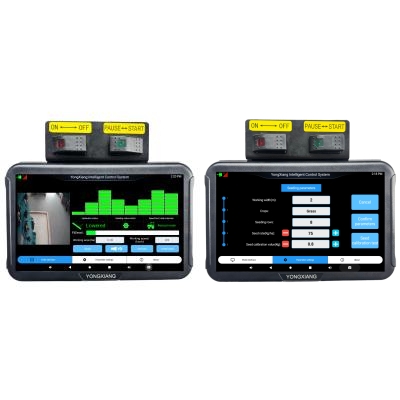

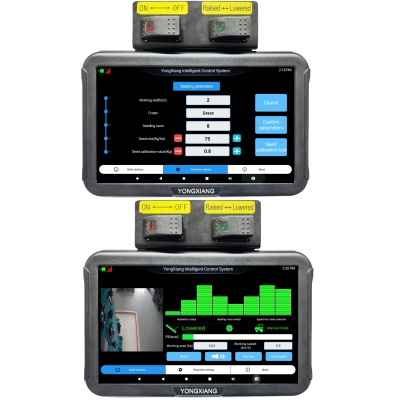

Intuitive Control and One-Touch Calibration
The 10-inch touchscreen control terminal allows the operator to monitor and adjust key seeding parameters from the tractor cab.
The system provides real-time information including seed level, working area and operating time. A dedicated one-touch calibration function makes seed-rate calibration testing quick, simple and hassle-free before heading into the field.
The control system works together with the metering drive and radar sensor to maintain the selected application rate during operation.

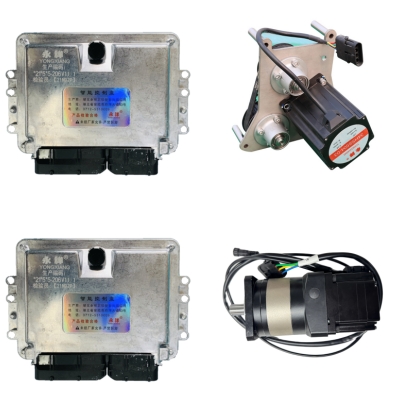

Consistent Metering with Intelligent Drive Control
The selected metering shaft and its rotational speed determine the application rate.
The YongXiang seeder uses a 12V stepper motor on 8-row, 12-row and dual 12-row configurations, while 16-row and 20-row models use an outer-rotor BLDC servo motor.
The central control system continuously monitors and adjusts the metering drive according to the selected application rate and forward speed, helping maintain consistent seed delivery during operation.

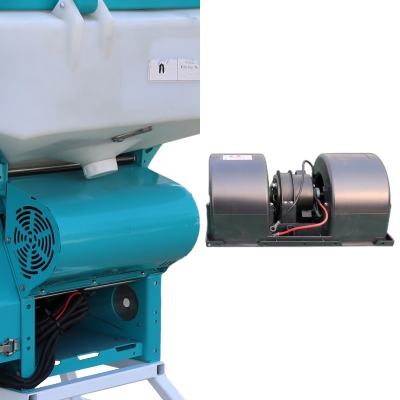

Pneumatic Seed Delivery
Two 12V electric fans generate the airflow required to transport metered seed through the flexible seed tubes to the broadcast outlets.
The pneumatic delivery system provides an even flow of material across the working width, while protective mesh at the fan air intakes helps prevent straw and debris from entering the fan system.

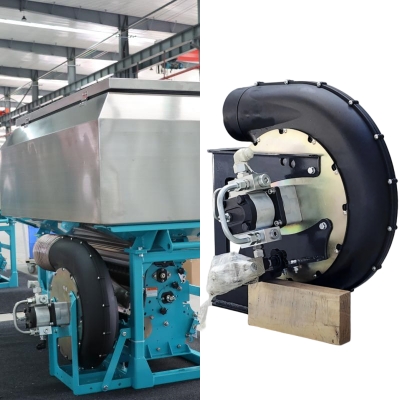

Hydraulic Fan for Wider Working Widths
An optional hydraulic fan provides additional airflow when the standard electric fan configuration is not sufficient.
It is suitable for wider working widths and higher application rates, depending on seed type and material characteristics.
Max. required pressure: 180 bar
Max. required oil quantity: 40L /min
Speed: 4,500 rpm

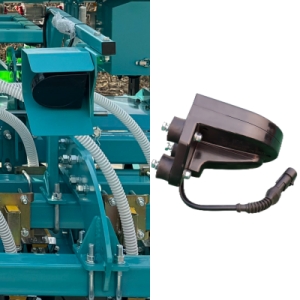

Radar Speed Synchronisation
The radar sensor continuously measures forward speed and sends the speed signal to the control system.
The metering drive responds to changes in forward speed, helping maintain the selected application rate when the tractor slows down or increases speed.
This speed-responsive control supports consistent material application across changing field conditions.

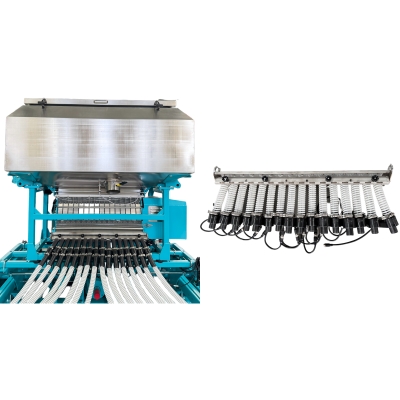

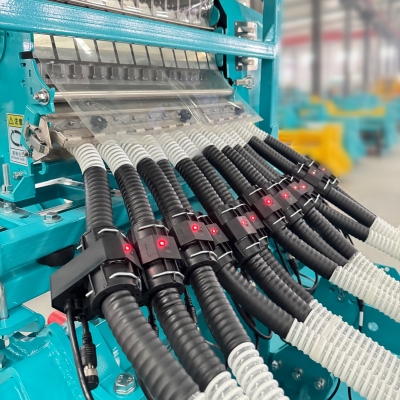

Optional Seed Tube Blockage Monitoring
Optional seed tube blockage monitoring can detect interruptions in material flow through the seed tubes.
Sensors monitor material flow below the discharge points and provide an alert on the control terminal if a blockage or missed delivery is detected.
This gives the operator an additional check on seed delivery during operation.

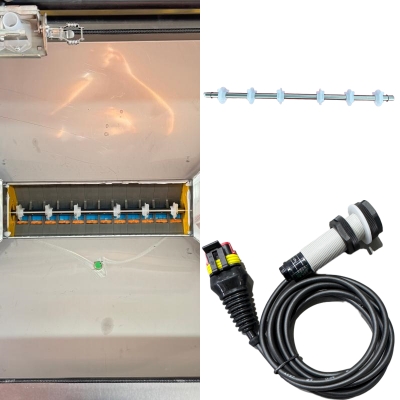

Agitator and Hopper Level Monitoring
A stainless-steel agitator is positioned above the metering shaft to help maintain a consistent flow of material and reduce the risk of bridging in the hopper.
A low-level hopper sensor provides an instant alarm when the seed or fertilizer drops below the critical threshold, allowing the operator to plan refilling efficiently and prevent empty runs.

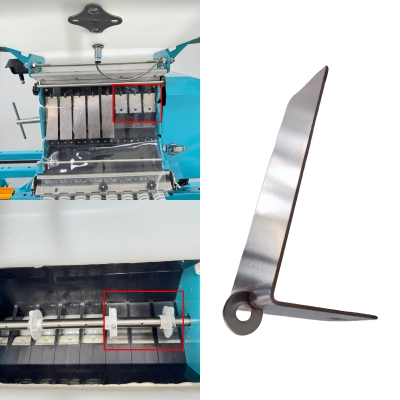

Independent Outlet Control
Each outlet can be opened or closed independently using the supplied L-shaped plugs.
This allows unused outlets to be closed when a narrower working width or different outlet configuration is required.
For example, an 8-outlet seeder can be configured with fewer active outlets to match the working width of the implement.

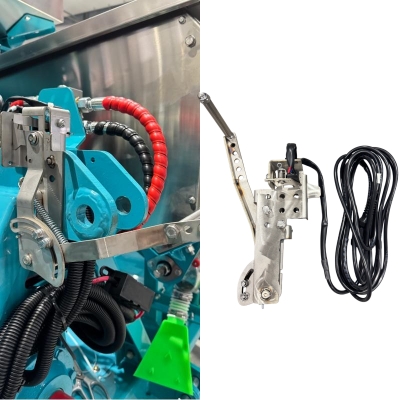

Automatic Start and Stop
An optional lift switch automatically starts or stops metering when the implement is raised or lowered.
When the implement is raised, the metering system stops. When the implement is lowered again, metering resumes.
This helps prevent unwanted application during headland turns, transport and other raised-implement operations.

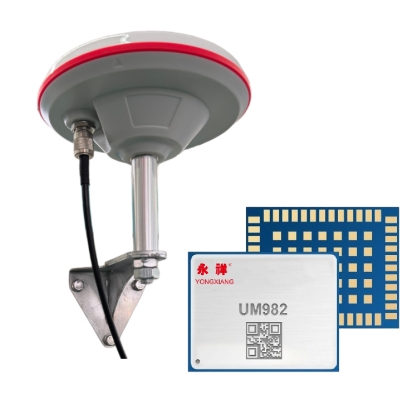

GPS Speed and Positioning
An optional GPS sensor can provide the vehicle's speed signal to the control system for speed-responsive metering.GPS speed data can be used as an alternative to radar speed signal.
An optional GPS positioning chip can provide positioning information for monitoring the seeder's field trajectory.
GPS positioning functionality is currently under overseas testing and should therefore be presented as an optional developing function rather than a fully established feature.

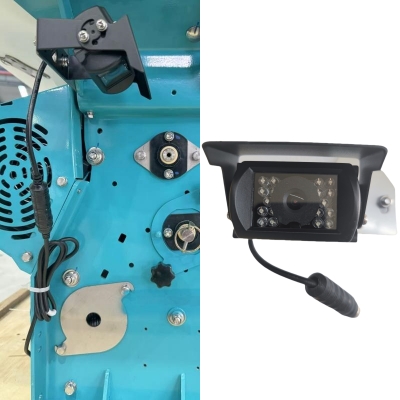

Real-Time Seeding Monitoring
An integrated camera allows the operator to monitor the seeding process from the touchscreen control terminal.
This provides an additional visual check during operation and helps the operator monitor the working condition of the metering system from the tractor cab.

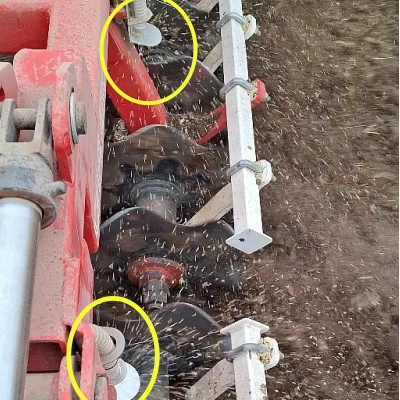

Precision Broadcast Seeding
The pneumatic grass seeder is designed for uniform broadcast distribution across the working width.

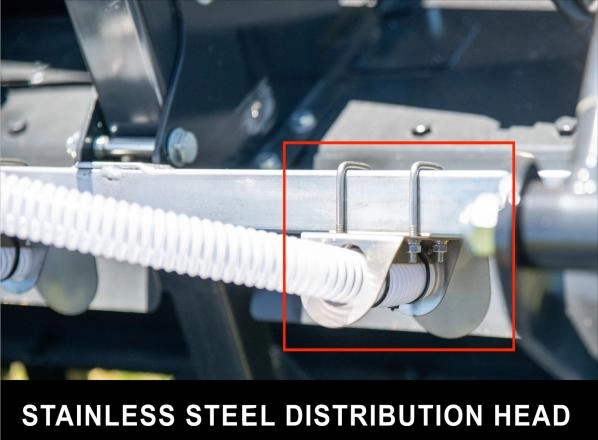

Standard broadcast heads with U-shaped brackets divide the seed flow across the selected working width. Stainless-steel outlets at the end of the seed tubes distribute the metered material evenly over the soil surface.
The system is particularly suited to grass seed and other small seeds where accurate metering and uniform lateral distribution are important.
Standard equipment:
10-inch touchscreen control terminal
Speed radar
Control box
Stepper motor / brushless motor, depending on configuration
Electric fan
Motor control unit
Booster
Relay
30m seed hose
Calibration bag, calibration scale and metering shaft
Low-level hopper sensor and motor monitoring
Camera for monitoring the metering system
Broadcast deflectors or drilling tubes
Seed agitator
Foreign-object sieve
Rocker switch
L-shaped outlet plugs
Wiring harness
Hydraulic fan — optional
Seed tube blockage monitoring — optional
Lift switch kit — optional
Technical Data
Item
Specification
Product Type
Pneumatic Grass Seeder
Outlet Configurations
8 / 12 / 16 / 20 / 24
Hopper Capacity
75–600 L
Seeding Method
Pneumatic broadcast seeding
Metering System
Interchangeable metering rollers
Suitable Materials
Grass seed and other small seeds
Control System
Electric metering + touchscreen + radar
General Technical Specifications
General Technical Specifications
Specification
Machine Type
Pneumatic grass seeder
Application
Grass seed and other small seeds
Seeding Method
Precision pneumatic broadcast seeding
Outlet Configuration
8 / 12 / 16 / 20 / 24 outlets
Hopper Capacity
75–600 L
Seed Metering
Interchangeable metering shafts
Metering Drive
Variable-speed electric metering
8 / 12-Outlet Drive
12V stepper motor
16 / 20-Outlet Drive
Outer-rotor BLDC servo motor
Fan System
Electric fan
Optional Fan
Hydraulic fan
Seed Delivery
Pneumatic delivery through flexible seed tubes
Speed Control
Radar speed synchronisation
Control System
10-inch touchscreen control terminal
Calibration
One-touch calibration
Application Rate
1–300 kg/ha
Seeding Mode
Broadcasting (via broadcast deflectors)
Drilling (via drilling tubes
Outlet Control
Individual outlets can be opened or closed
Hopper Level Monitoring
Fill level sensor
Motor Monitoring
Yes
Camera Monitoring
Yes
Optional Monitoring
Seed tube blockage monitoring
Optional Automatic Control
Lift switch kit
Optional Speed Sensor
GPS speed sensor
Suitable Seeds
Grass seed, alfalfa, ryegrass, clover and other suitable small seeds
