Key Benefits
1250L High-Capacity Hopper
Provides high material capacity for extended field operation.
24-Outlet Configuration
Designed for wide working widths and higher-output pneumatic seeding.
Dual Metering Systems
Provides flexible material metering for different application requirements.
Hydraulic Fan as Standard
Provides the airflow required for pneumatic material delivery.
Radar Speed Synchronisation
Helps maintain the selected application rate as forward speed changes.
Large-Scale Seeding
Designed for larger farms and contractors requiring high-capacity equipment.
Dual Metering Systems for High-Capacity Application
The 2BDGS-12S-L1250 uses two metering systems to provide controlled material delivery across 24 outlets.
Interchangeable metering rollers allow the system to be configured for different seeds, granular fertilizer and other compatible materials.

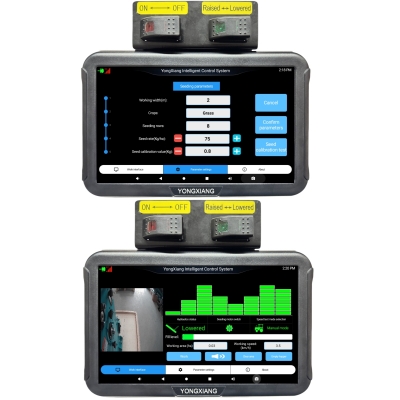

Intuitive Control and One-Touch Calibration
The 10-inch touchscreen control terminal allows the operator to monitor and adjust key seeding parameters from the tractor cab.
The dual metering system can be calibrated according to the selected application rate, while the control system provides information for hopper level, working area and operating time.
The control terminal works together with the metering drive and radar sensor to maintain the selected application rate during operation.

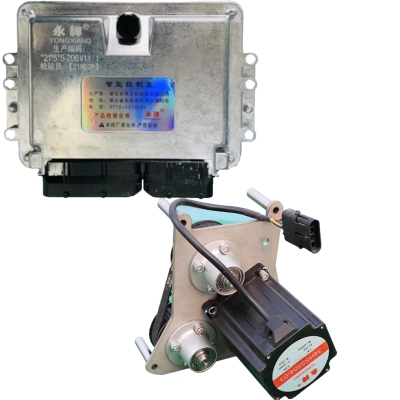

Consistent Metering with Dual Electric Drive
The two metering systems are driven by stepper motors and controlled by the central control system.
Metering speed is adjusted according to the selected application rate and forward speed to maintain consistent material delivery.

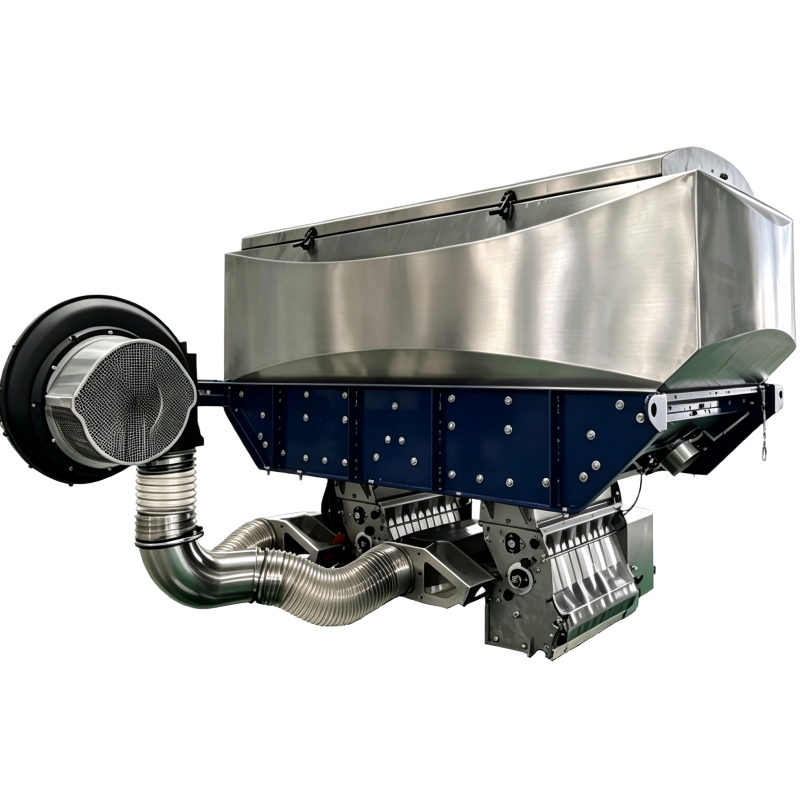

Hydraulic Fan for High-Capacity Pneumatic Delivery
The hydraulic fan provides the airflow required to transport metered material through the seed hoses across wider working widths and higher application rates.
The system is designed for working widths of up to 12 metres, depending on seed/material characteristics and application conditions.
Max. required pressure: 180 bar
Max. required oil quantity: 40L /min
Speed: 4,500 rpm
Radar Speed Synchronisation
The radar sensor continuously measures forward speed and sends the speed signal to the control system.
The metering drive responds to changes in forward speed, helping maintain the selected application rate when the tractor slows down or increases speed.
This speed-responsive control supports consistent material application across changing field conditions.

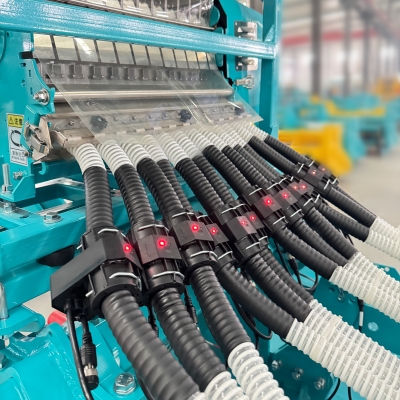

Optional Seed Tube Blockage Monitoring for Two Monitoring Systems
Optional seed tube blockage monitoring detects interruptions in material flow through the seed tubes.
Sensors monitor material flow below the discharge points and provide an alert on the control terminal if a blockage or missed delivery is detected.
This gives the operator an additional check on seed delivery and helps identify problems quickly during operation.
Dual Agitator and Hopper Level Monitoring
Each hopper section is equipped with an agitator to help maintain consistent material flow above the metering system.
Hopper level monitoring provides an alert when material drops below the critical threshold.
Flexible 24-Outlet Configuration
The 24 outlets can be configured according to the required working width and application method.
L-shaped outlet plugs allow unused outlets to be closed when a narrower working configuration is required.
Optional Lift Switch Kit
The optional lift switch kit automatically starts or stops metering according to the position of the implement.
When the implement is raised, the metering system stops automatically. When the implement is lowered again, metering resumes.
The stainless-steel switch is mounted on the tractor's three-point linkage and provides automatic start/stop control during headland turns, transport and other raised-implement operations.
Optional GPS Speed and Positioning
An optional GPS sensor can provide the vehicle's speed signal to the control system for speed-responsive metering.GPS speed data can be used as an alternative to radar speed signal.
An optional GPS positioning chip can provide positioning information for monitoring the seeder's field trajectory.
GPS positioning functionality is currently under overseas testing and should therefore be presented as an optional developing function rather than a fully established feature.
Real-Time Seeding Monitoring
An integrated camera allows the operator to monitor the seeding process from the touchscreen control terminal.
This provides an additional visual check during operation and helps the operator monitor the working condition of the metering system from the tractor cab.
24-Row Pneumatic Seeding

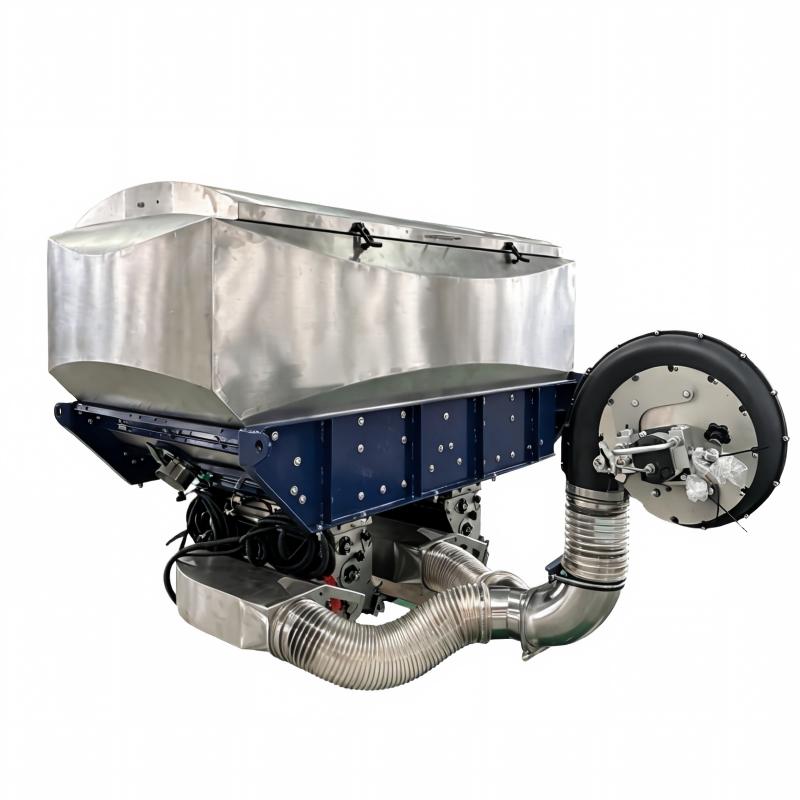

The 2BDGS-12S-L1250 provides 24 pneumatic outlets for high-capacity broadcast or optional row seeding.
The hydraulic fan supports pneumatic material delivery across working widths of up to 12 metres, depending on operating conditions.
Standard Equipment
10-inch touchscreen control terminal
Speed radar
2 × stepper motors
Hydraulic fan
2 × motor control units
2 × boosters
2 × relays
2 × 30 m seed hoses
Calibration bag, electronic scale and 2 × standard metering rollers
2 × hopper level monitoring systems
Camera
2 sets × broadcast heads or row-seeding outlets
2 × seed agitators
2 × foreign-object sieves
Rocker switch
L-shaped outlet plugs
Wiring harness
Optional Equipment
Seed tube blockage monitoring
Lift switch kit
GPS speed and positioning
Additional metering rollers
