01. Lightweight Configuration
Designed for low-power tractors from 70 HP, providing a compact solution for smaller-scale farming operations.
02. Combined Seeding and Fertilizer Application
Applies seed and fertilizer in one field operation to reduce passes and simplify crop establishment.
03. Pneumatic Seed Delivery
Pneumatic delivery transports metered seed through flexible hoses to the selected outlets for uniform distribution.
04. Adjustable Row Configuration
The 8-row configuration can be adjusted from 1 to 8 outlets to suit different working widths and field requirements.
05. Radar Speed Synchronisation
Forward-speed data is used to adjust metering speed and maintain the selected application rate as operating speed changes.
06. Compact Seedbed Finishing
Disc furrow opening and the packer roller work with the seeding system to establish and reconsolidate the seed zone in one pass.

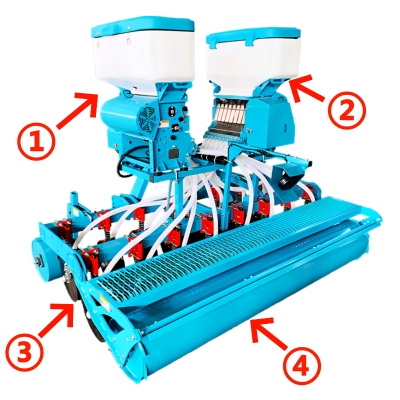

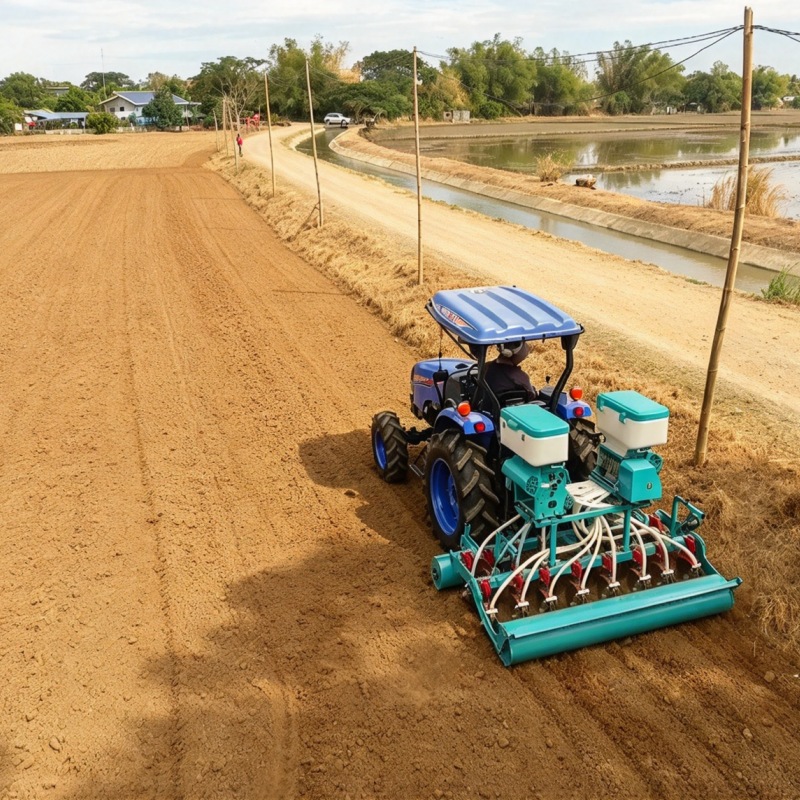

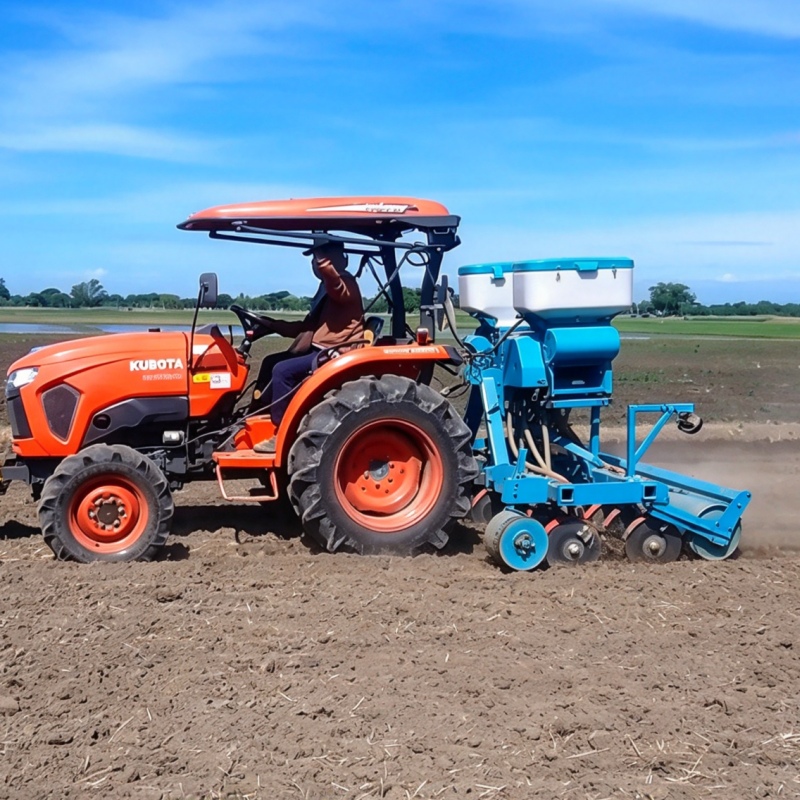

Lightweight Configuration for Low-Power Tractors

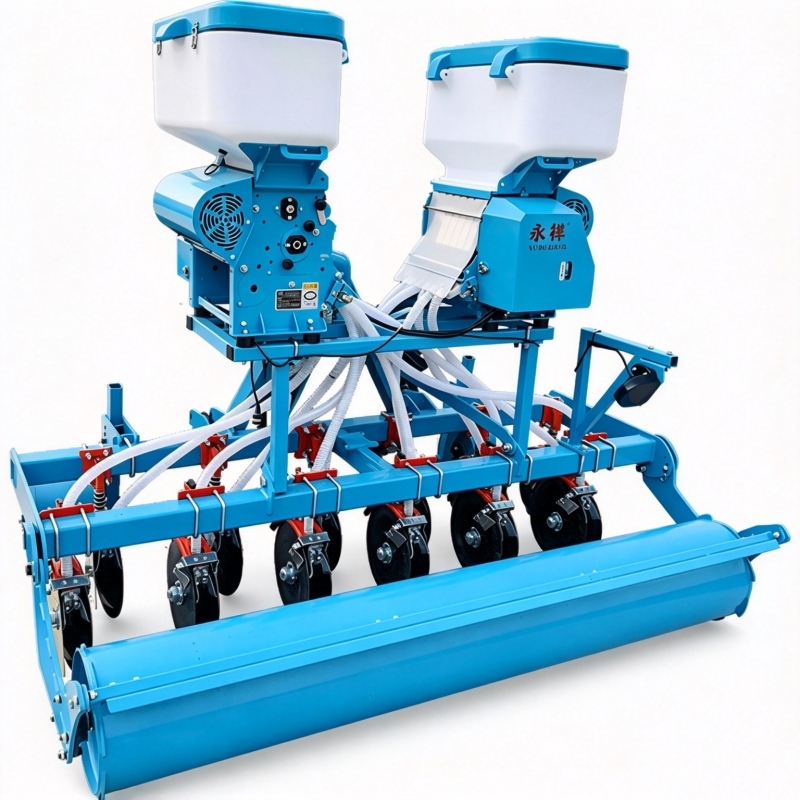

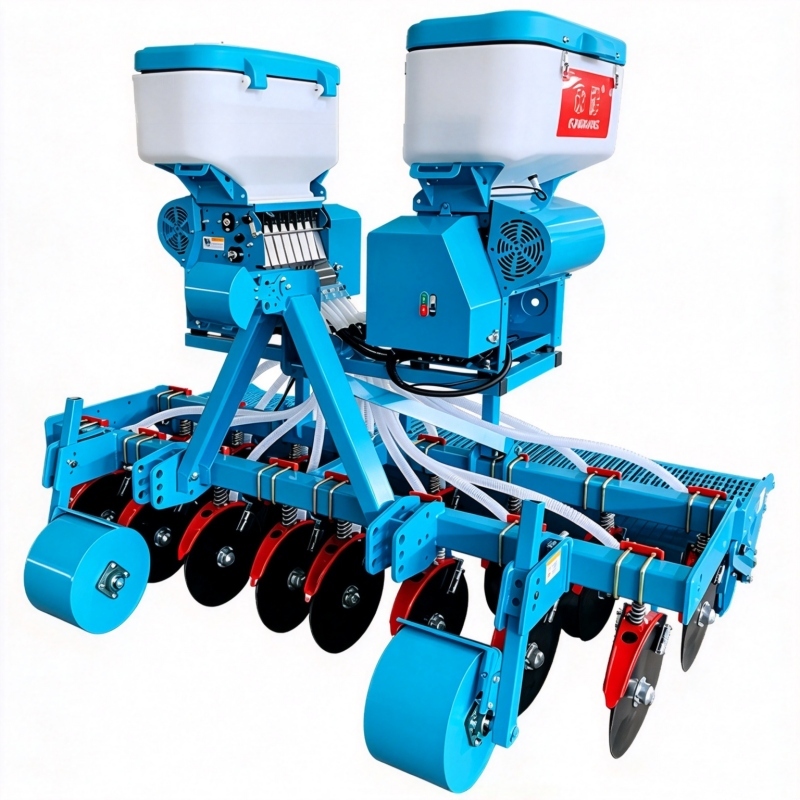

The 2BFGL-C Series is designed as a compact mounted seeder and fertilizer applicator for tractors from 70 HP.
Its lightweight configuration combines ①seed metering, ②fertilizer application, ③furrow opening, ④seed covering and soil reconsolidation.
This makes the machine suitable for smaller tractors and operations where a compact one-pass seeding and fertilizing system is required.
Interchangeable Metering Shafts
Different metering shafts are available for different seed types, seed sizes and application rates.
Selecting the correct shaft helps maintain accurate metering, particularly when working with small seeds and low application rates.
The metering shaft can be changed without specialist tools, allowing the 2BFGL-C Series to be quickly adapted for different crops, cover crops and other compatible materials.

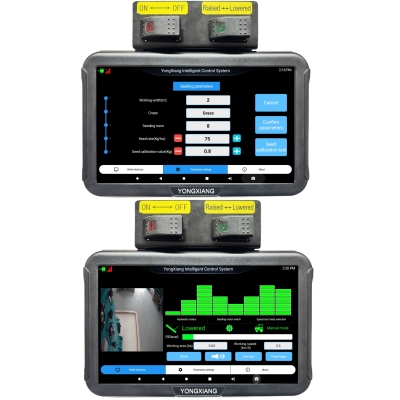

Intuitive Control and One-Touch Calibration
The 10-inch touchscreen control terminal allows the operator to monitor and adjust key seeding parameters from the tractor cab.
The system provides real-time information for seed level, working area and operating time. A dedicated one-touch calibration function makes seed-rate calibration quick, simple and hassle-free before field operation.
The control terminal works together with the metering drive and radar sensor to maintain the selected application rate during operation.

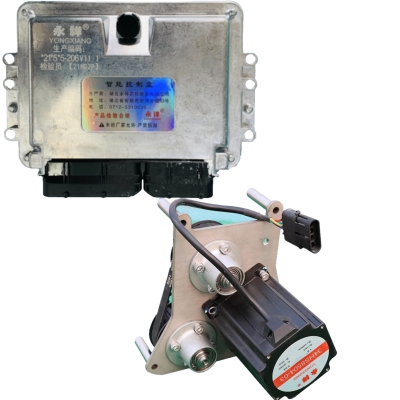

Consistent Metering with Electric Drive
The selected metering shaft and its rotational speed determine the application rate.
The 2BFGL-C Series uses a 12V stepper motor to drive the metering system. The central control system continuously monitors and adjusts the metering speed according to the selected application rate and forward speed.
This speed-responsive control helps maintain consistent material delivery across changing field conditions.
Dual 12V Electric Fans for Pneumatic Seed Delivery
Two 12V electric fans generate the airflow required to transport metered material through the seed hoses to the distribution outlets.
The pneumatic delivery system provides an even flow of material across the working width, while protective mesh at the fan air intakes helps prevent straw and debris from entering the fan system.
Radar Speed Synchronisation
The radar sensor continuously measures forward speed and sends the speed signal to the control system.
The metering drive responds to changes in forward speed, helping maintain the selected application rate when the tractor slows down or increases speed.
This speed-responsive control supports consistent material application across changing field conditions.

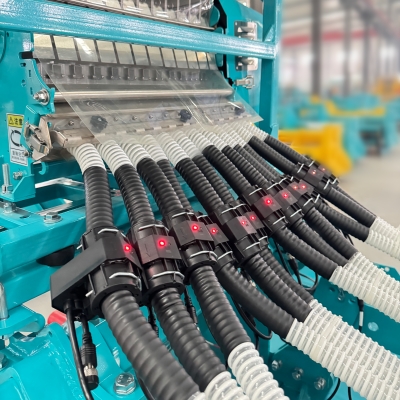

Optional Seed Tube Blockage Monitoring
Optional seed tube blockage monitoring detects interruptions in material flow through the seed tubes.
Sensors monitor material flow below the discharge points and provide an alert on the control terminal if a blockage or missed delivery is detected.
This gives the operator an additional check on seed delivery and helps identify problems quickly during operation.
Agitator and Hopper Level Monitoring
A stainless-steel agitator is positioned above the metering shaft to help maintain a consistent material flow and reduce the risk of bridging in the hopper.
A low-level hopper sensor provides an instant alarm when the seed or fertilizer drops below the critical threshold, allowing the operator to plan refilling efficiently and prevent empty runs.
Flexible Outlet Configuration
Each outlet can be opened or closed independently using the supplied L-shaped plugs.
This allows the 8-outlet seeder to be configured with fewer active outlets when a narrower working width is required.
The system can therefore be adapted to different implements and working widths without changing the main seeder unit.
Lift Switch Kit
The lift switch kit automatically starts or stops metering according to the position of the implement.
When the implement is raised, the metering system stops automatically. When the implement is lowered again, metering resumes.
The stainless-steel switch is mounted on the tractor's three-point linkage and provides automatic start/stop control during headland turns, transport and other raised-implement operations.
Optional GPS Speed and Positioning
An optional GPS sensor can provide the vehicle's speed signal to the control system for speed-responsive metering.GPS speed data can be used as an alternative to radar speed signal.
An optional GPS positioning chip can provide positioning information for monitoring the seeder's field trajectory.
GPS positioning functionality is currently under overseas testing and should therefore be presented as an optional developing function rather than a fully established feature.
Real-Time Seeding Monitoring
An integrated camera allows the operator to monitor the seeding process from the touchscreen control terminal.
This provides an additional visual check during operation and helps the operator monitor the working condition of the metering system from the tractor cab.

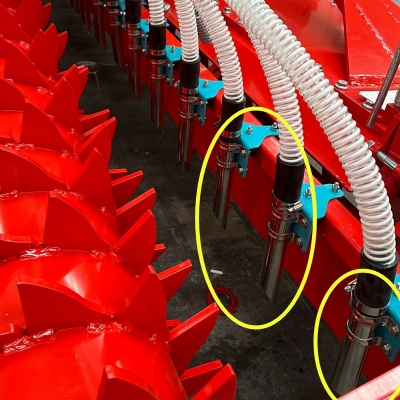

Precision Row Drilling
The 2BFGL-C Series can be configured for row drilling according to the selected outlet arrangement.
For row drilling, stainless-steel outlets can be fitted to the seed lines to deliver material through individual outlets.
This flexibility allows the seeding system to be adapted to different crops, working widths and application methods.
Standard Equipment
Control & Monitoring
Seeding & Fertilizer Application
Seed metering system
Fertilizer metering system
Standard metering shafts for seed and fertilizer
Dual 12V electric fans
2x30m seed hoses
Calibration kit
Electronic calibration scales
Soil-Working Equipment
Disc furrow openers
Packer roller
Other
Battery connection cable
Adjustable outlets
Seed agitator
Optional Equipment
