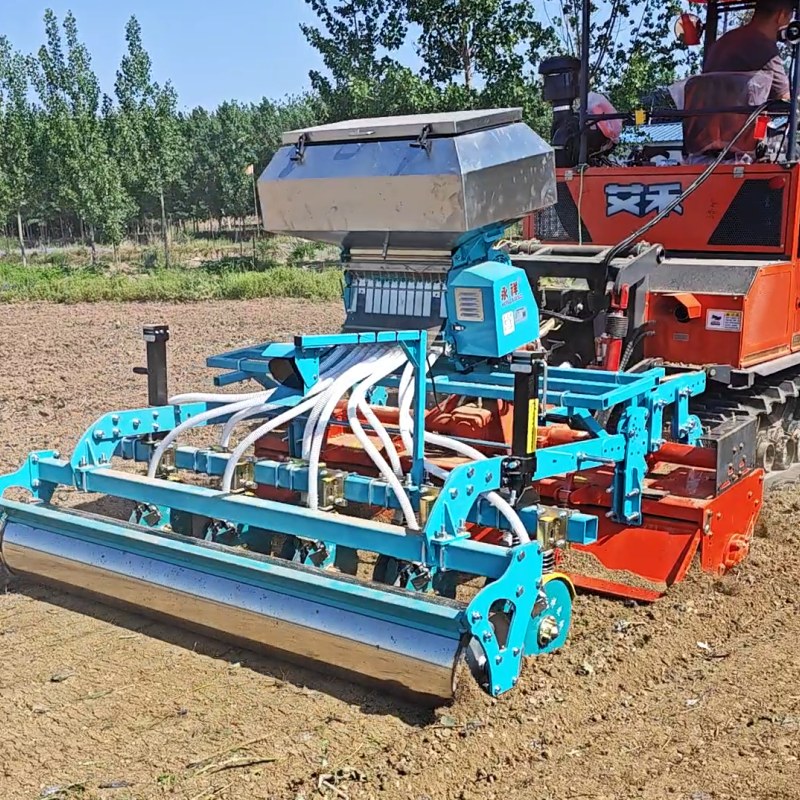

The YongXiang 2BFG-P Series combines rotary tillage and pneumatic seeding in a single mounted machine.
The integrated rotary tiller prepares the seedbed while the pneumatic seeding system meters and delivers seed through flexible seed hoses to the selected outlets. Furrow opening, seed placement, soil covering and reconsolidation are completed in the same field operation.
With interchangeable metering rollers, stepper-motor-driven metering and radar speed synchronisation, the 2BFG-P Series provides a practical solution for one-pass seedbed preparation and seeding across working widths from 2 to 3 metres.
One-Pass Rotary Tillage and Seeding Combines soil preparation, furrowing, seeding, covering and reconsolidation.
Integrated Rotary Tillage Prepares the seedbed as part of the seeding operation.
Pneumatic Seed Delivery Provides controlled delivery of metered seed to the outlets.
Flexible Row Configuration Supports different row numbers and working widths.
Radar Speed Synchronisation Helps maintain the selected application rate as forward speed changes.
One-Touch Calibration Simplifies application-rate setup before field operation.
Five Operations in One Pass
Rotary Tillage
Furrow Opening
Pneumatic Seeding
Seed Covering
Soil Reconsolidation
Interchangeable Metering Rollers
Different metering rollers are available for different granular seed types, seed sizes and application rates.
Selecting the appropriate roller helps maintain controlled metering, particularly when working with low application rates or smaller seeds.
The metering roller can be changed without specialist tools, allowing the seeder to be adapted to different crops and compatible seed materials.

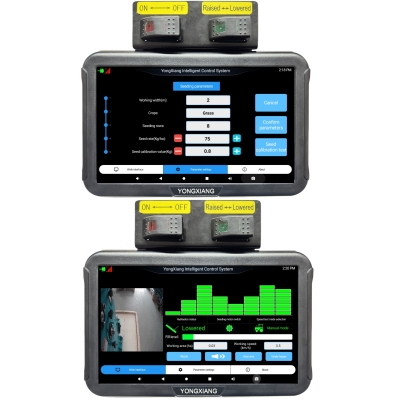

Intuitive Control and One-Touch Calibration
The 10-inch touchscreen control terminal allows the operator to monitor and adjust key seeding parameters from the tractor cab.
The system provides real-time information for seed level, working area and operating time. A dedicated one-touch calibration function makes seed-rate calibration quick, simple and hassle-free before field operation.
The control terminal works together with the metering drive and radar sensor to maintain the selected application rate during operation.

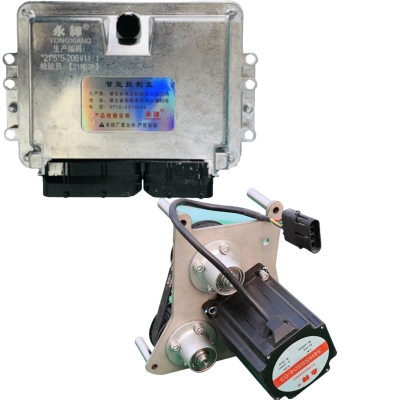

Consistent Metering with Electric Drive
The selected metering roller and its rotational speed determine the application rate.
The 2BFG-P Series uses a stepper motor to drive the metering system. The control system adjusts metering speed according to the selected application rate and forward speed.
Dual 12V Electric Fans for Pneumatic Seed Delivery
Two 12V electric fans generate the airflow required to transport metered material through the seed hoses to the distribution outlets.
The pneumatic delivery system provides an even flow of material across the working width, while protective mesh at the fan air intakes helps prevent straw and debris from entering the fan system.
Radar Speed Synchronisation
The radar sensor continuously measures forward speed and sends the speed signal to the control system.
The metering drive responds to changes in forward speed, helping maintain the selected application rate when the tractor slows down or increases speed.
This speed-responsive control supports consistent material application across changing field conditions.

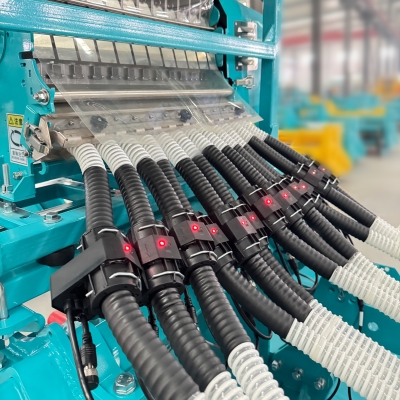

Optional Seed Tube Blockage Monitoring
Optional seed tube blockage monitoring detects interruptions in material flow through the seed tubes.
Sensors monitor material flow below the discharge points and provide an alert on the control terminal if a blockage or missed delivery is detected.
This gives the operator an additional check on seed delivery and helps identify problems quickly during operation.
Agitator and Hopper Level Monitoring
A stainless-steel agitator is positioned above the metering roller to help maintain a consistent material flow and reduce the risk of bridging in the hopper.
A low-level hopper sensor provides an instant alarm when the seed or fertilizer drops below the critical threshold, allowing the operator to plan refilling efficiently and prevent empty runs.
Flexible Outlet Configuration
Each outlet can be opened or closed independently using the supplied L-shaped plugs.
This allows the 2BFG-P Series seeder to be configured with fewer active outlets when a narrower working width is required.
The system can therefore be adapted to different implements and working widths without changing the main seeder unit.
Optional Lift Switch Kit
The optional lift switch kit automatically starts or stops metering according to the position of the implement.
When the implement is raised, the metering system stops automatically. When the implement is lowered again, metering resumes.
The stainless-steel switch is mounted on the tractor's three-point linkage and provides automatic start/stop control during headland turns, transport and other raised-implement operations.
Optional GPS Speed and Positioning
An optional GPS sensor can provide the vehicle's speed signal to the control system for speed-responsive metering.GPS speed data can be used as an alternative to radar speed signal.
An optional GPS positioning chip can provide positioning information for monitoring the seeder's field trajectory.
GPS positioning functionality is currently under overseas testing and should therefore be presented as an optional developing function rather than a fully established feature.
Real-Time Seeding Monitoring
An integrated camera allows the operator to monitor the seeding process from the touchscreen control terminal.
This provides an additional visual check during operation and helps the operator monitor the working condition of the metering system from the tractor cab.

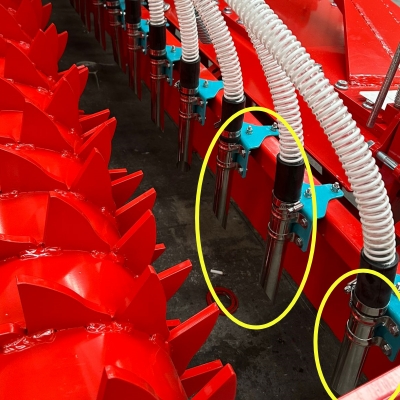

Precision Row Seeding
The 2BFG-P Series can be configured for row seeding according to the selected outlet arrangement.
For row seeding, stainless-steel outlets can be fitted to the seed lines to deliver material through individual outlets.
This flexibility allows the seeding system to be adapted to different crops, working widths and application methods.

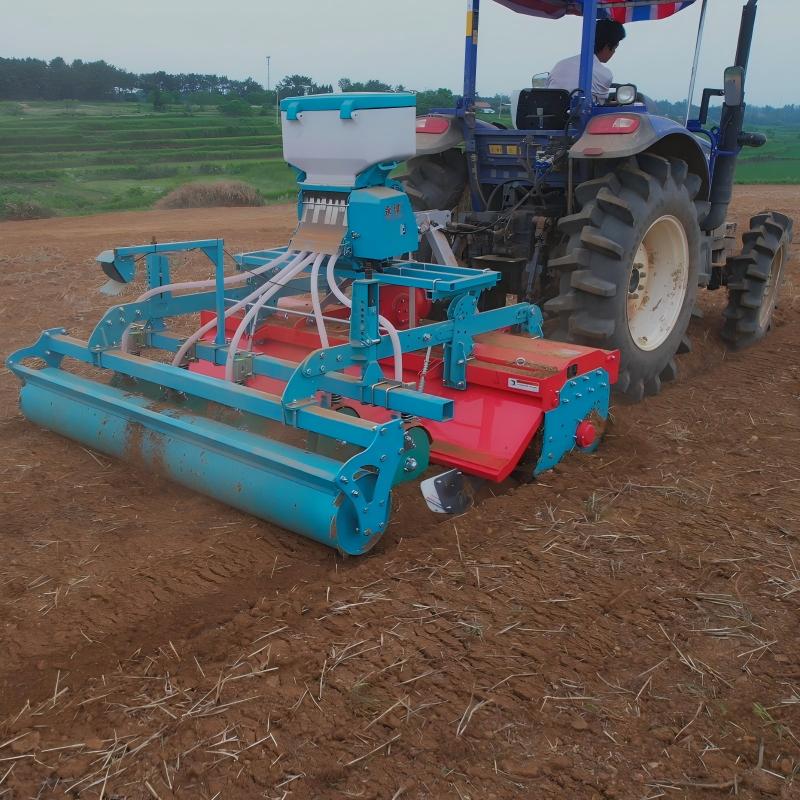

Integrated Rotary Tillage and Seeding
The 2BFG-P Series is designed as an integrated rotary tillage seeder rather than a standalone pneumatic seeder.
The rotary tiller prepares the soil, while the seeding system meters and pneumatically delivers the seed. Furrow opening, covering and reconsolidation are completed within the same pass.
This configuration provides a compact solution for operators looking to combine seedbed preparation and seeding in one field operation.
