Key Benefits
One-Pass Seedbed Preparation
Combines power harrow cultivation and pneumatic seeding in one operation.
Precision Pneumatic Seeding
Provides controlled metering and pneumatic seed delivery.

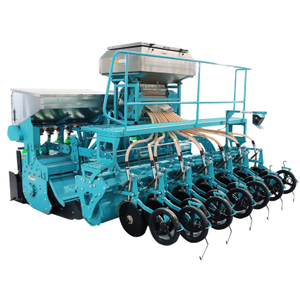

Parallel Four-Bar Linkage
Helps the seeding units follow changes in ground contours.
FL / FL-F Configurations
Available as a seeding-only FL version or integrated seeding and fertilizer FL-F version.
Independent Reconsolidation
Supports consistent soil conditions after seeding.
Flexible Working Widths
Available in 2.5m and 3.0m configurations.

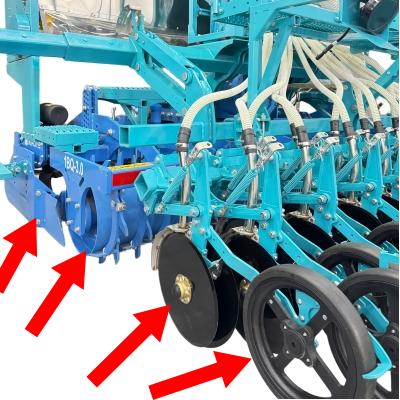

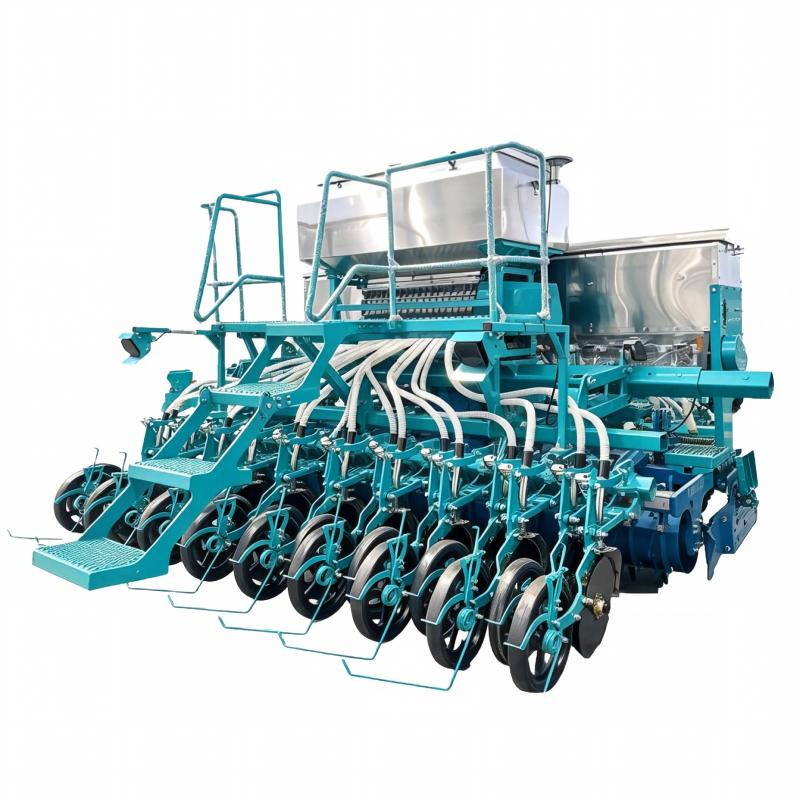

One-Pass Seedbed Preparation and Seeding
The integrated power harrow prepares and levels the soil before the seed drill places the seed. Furrow opening, seed placement, soil covering and reconsolidation are completed within the same field operation.
This combination reduces the number of passes required for seedbed preparation and seeding while providing a compact solution for mounted drilling.

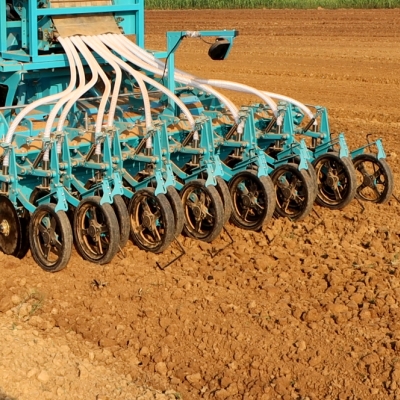

Double Disc Coulter with Depth Control
The double disc coulter with a rubber-tyred depth-control wheel supports consistent seed placement at the selected depth, even when field conditions vary.
The depth-control wheel helps maintain seed placement depth and supports consistent soil contact after seed placement.

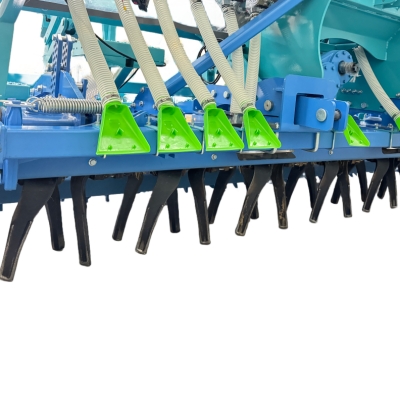

Power Harrow Seedbed Preparation
The power harrow works the soil ahead of the coulter bar to prepare a suitable seedbed for drilling.
The working depth can be adjusted according to soil conditions, allowing the machine to combine seedbed preparation and seeding in one pass.
Interchangeable Metering Rollers
Different metering rollers are available for different seed types, seed sizes and application rates.
Selecting the appropriate roller helps maintain controlled seed metering, particularly when working with smaller seeds and lower application rates.
The metering roller can be changed without specialist tools, allowing the seed drill to be adapted to different crops and compatible seed materials.

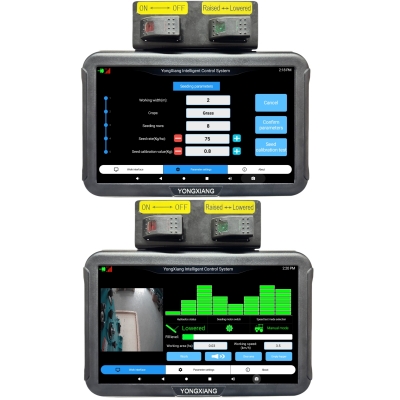

Intuitive Control and One-Touch Calibration
The 10-inch touchscreen control console allows the operator to monitor and adjust key seeding parameters from the tractor cab.
The calibration function allows the selected seed rate to be checked and adjusted before field operation, while seed level and operating information can be monitored during work.

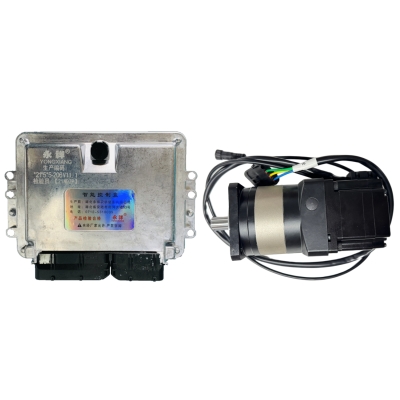

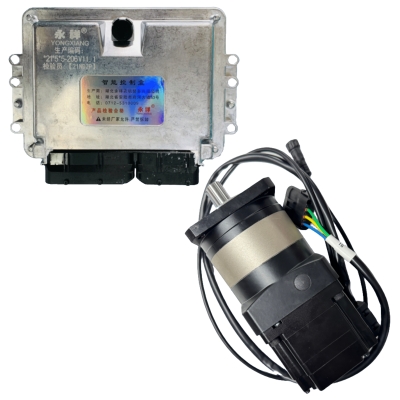

Consistent Metering with outer-rotor BLDC servo Drive
The selected metering roller and its rotational speed determine the application rate.
The 2BFG-FL/FL-F Series uses a 12V outer-rotor BLDC servo motor to drive the metering system. The central control system monitors the metering drive and adjusts its speed according to the selected application rate and forward speed.
This speed-responsive control helps maintain consistent seed delivery as field speed changes.
Pneumatic Seed Delivery
12V electric fans generate the airflow required to transport metered seed through the seed lines to the distribution outlets.
The pneumatic delivery system provides an even flow of material across the working width. Protective mesh at the fan air intakes helps prevent straw and debris from entering the fan system.

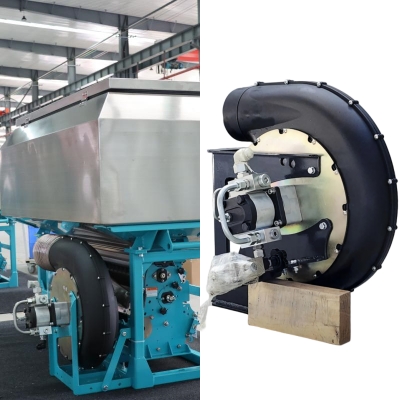

Hydraulic Fan for Wider Working Widths
An optional hydraulic fan provides additional airflow when the standard electric fan configuration is not sufficient.
It is suitable for wider working widths and higher application rates, depending on seed type and material characteristics.
Max. required pressure: 180 bar
Max. required oil quantity: 40L /min
Speed: 4,500 rpm
Radar Speed Synchronisation
The radar sensor continuously measures forward speed and sends the speed signal to the control system.
The metering drive responds to changes in forward speed to help maintain the selected application rate.

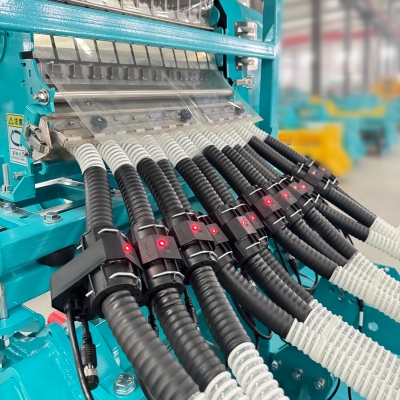

Optional Seed Tube Blockage Monitoring
Optional seed tube blockage monitoring detects interruptions in material flow through the seed tubes.
Sensors monitor material flow below the discharge points and provide an alert on the control terminal if a blockage or missed delivery is detected.
This gives the operator an additional check on seed delivery during operation.
Agitator and Hopper Level Monitoring
An agitator positioned above the metering roller helps maintain consistent material flow and reduce the risk of bridging.
A low-level hopper sensor provides an alarm when the material level falls below the set threshold.
Flexible Outlet Configuration
Each outlet can be opened or closed independently using the supplied L-shaped plugs.
This allows the number of active outlets to be adjusted according to the selected working width and row configuration.
For example, an 16-outlet machine can be configured with fewer active outlets where required by the implement configuration.
Optional Lift Switch Kit
The optional lift switch kit automatically starts or stops metering according to the position of the implement.
When the implement is raised, the metering system stops automatically. When the implement is lowered again, metering resumes.
This helps prevent unwanted seed application during headland turns, transport and other raised-implement operations.
Optional GPS Speed and Positioning
An optional GPS sensor can provide the vehicle's speed signal to the control system for speed-responsive metering.GPS speed data can be used as an alternative to radar speed signal.
An optional GPS positioning chip can provide positioning information for monitoring the seeder's field trajectory.
GPS positioning functionality is currently under overseas testing and should therefore be regarded as an optional developing function rather than a fully established feature.
Real-Time Seeding Monitoring
An integrated camera allows the operator to monitor the seeding process from the control console.
This provides an additional visual check during operation and helps the operator monitor the working condition of the seeding system from the tractor cab.

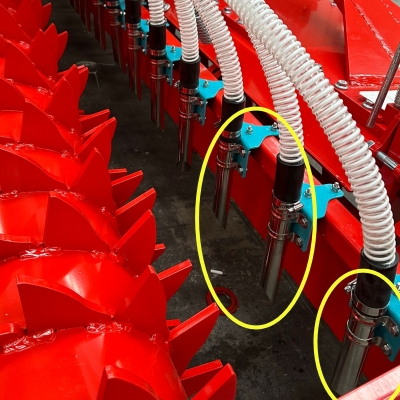

Pneumatic Row Seeding
The pneumatic metering and distribution system delivers seed from the hopper through the seed hoses to the individual coulters.
The available outlet configurations can be adjusted to match the selected working width and row arrangement.
2BFG-FL and 2BFG-FL-F Configurations
| Configuration | Function |
| 2BFG-FL | Power harrow + pneumatic seed drill |
| 2BFG-FL-F | Power harrow + pneumatic seed drill + fertilizer application |
Standard Equipment
10-inch control console
30 m seed hoses
Standard metering roller for granular seeds
Battery connection cable
Calibration kit and electronic weighing scale
Speed radar
Power harrow
Disc furrow openers
Parallel four-bar linkage
Compacting roller
Pneumatic seed distribution system
Fertilizer metering and distribution system(only 2BFG-FL-F)
